Actisense

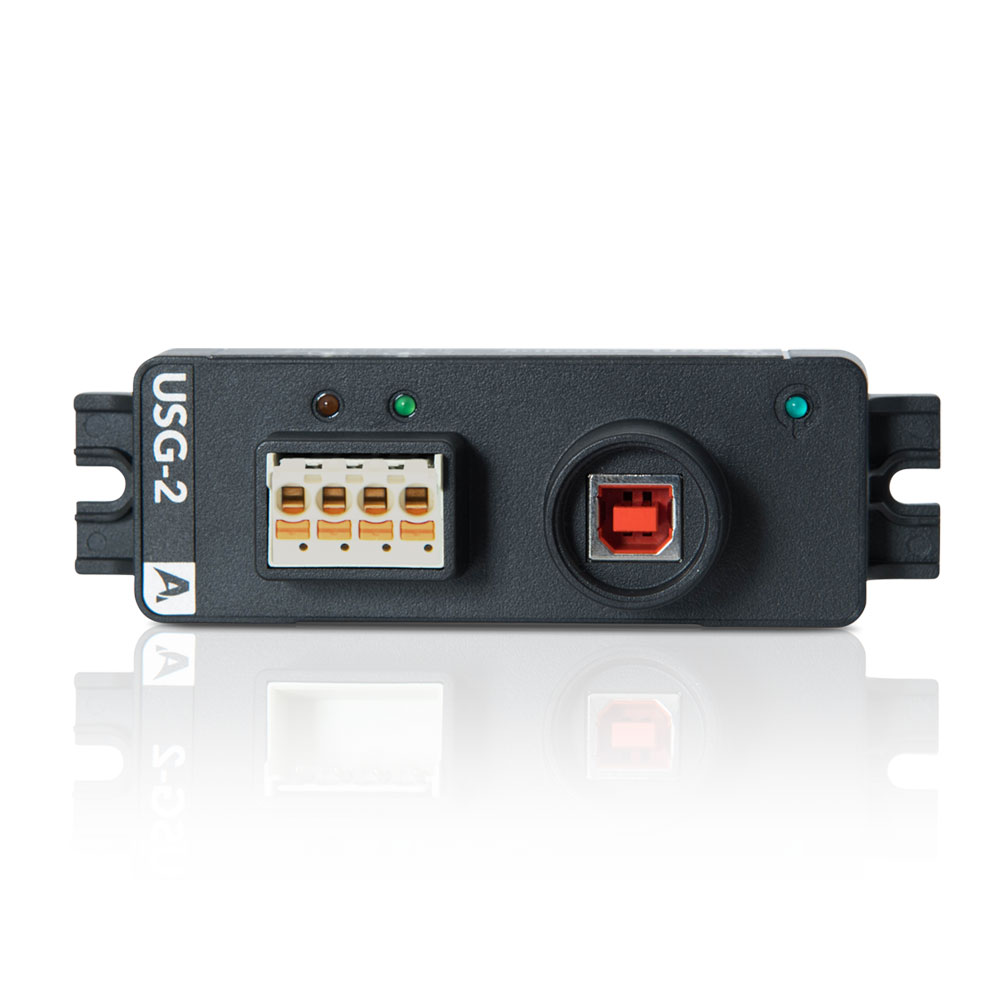

Actisense USG-2 NMEA 0183 to USB Serial Gateway

Actisense USG-2 NMEA 0183 to USB Serial Gateway

SKU:005-USG-2

Regular price £118.63
Regular price Sale price £118.63
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • NMEA 0183 RS422 & RS232 compatible
  • ISO-Drive™ technology
  • Pluggable screwless connector with locking latch & strain relief
  • Encapsulated electronics
  • High retention USB socket
  • Diagnostic & power LEDs
  • Baud rates from 300 to 230400 bps
  • Bulkhead mount with optional DIN rail mount kit
  • Pluggable screwless connector

The USG-2 provides a far safer connection when compared to standard USB to serial converters. Electrical isolation is provided by the ISO-Drive™ output and OPTO-isolated input making installation simple and free from ground loops.

The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low-level signals that are often too small to be received by a PC serial port.

The USG-2 is the safest way to connect a boat’s data network to an on-board PC.

Note: The USG-2 ships with a USB cable included in the box. However the USG-2 cable is also available as an accessory in case a replacement is needed.

BENEFITS

  • Inputs & outputs protected against over voltage ESD & short circuits
  • Simple installation
  • Protects PC from damage
  • Eliminates ground loops
