Furuno

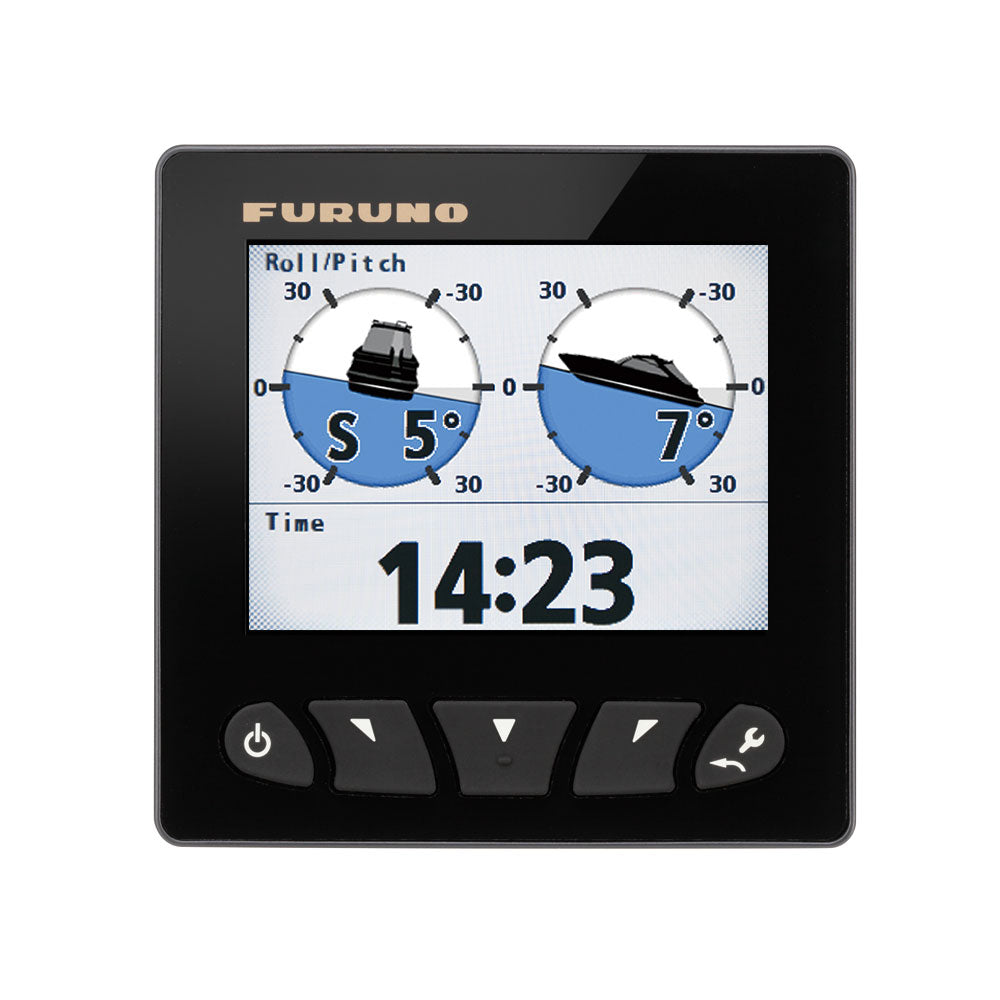

Furuno FI-70 Colour Instrument

Furuno FI-70 Colour Instrument

SKU:260-IMD03413001

Regular price £526.80
Regular price Sale price £526.80
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • Port: CAN bus (NMEA2000) x1
  • Display Unit: 4.1\" Color LCD (QVGA 320x240 pixels)
  • Temperature: -15°C to +55°C
  • Waterproofing: IP56
  • Power Supply: 15 VDC through CAN bus (15 VDC 0.25 A max LEN3)
  • Weight: 0.29 kg
  • Size: 115 x 115 x 32mm

The FI-70 sports a vibrant 4.1\" bonded color display that is visible even in the harshest sunlight conditions. It features an easy to operate graphical user-interface that allows the user to customize almost every display property to choose how and what information is displayed.

Simple Setup for Powerboats and Sailboats alike

No matter if installed on a powerboat or a sailboat the FI-70 Instrument / Data Organiser will be equally useful with the proper sensors connected. For maximum performance and simple setup the FI-70 automatically asks the vessel typer during setup helping to customise the operation of the unit. With its low power consumption and easy installation its hard to imagine a vessel where the FI-70 wouldn\'t be a benefit.

Display Data

  • Speed: STW (Speed Through Water) Max STW Average STW SOG (Speed Over Ground) Max SOG Average SOG VMG Velocity Made Good.
  • Wind: AWS (Apparent Wind Speed) TWS (True Wind Speed) Max TWS AWA (Apparent Wind Angle) TWA (True Wind Angle) Beaufort Wind GWD (Ground Wind Direction).
  • Heading: HDG (Heading) Average HDG Heading on Next Tack ROT (Rate of Turn).
  • Course: COG (Course Over Ground).
  • Timer: Count Down Timer 1 Count Down Timer 2 Count Up Timer.
  • Navigation: Bearing RNG (Range) WPT (Position) XTE (Cross-Track Error) Position ETA Time ETA Date Trip Odometer.
  • Boat: Rudder Angle Trim Tabs Roll/Pitch.
  • Engine: Engine RPM Trip Fuel Used Fuel Rate Engine Trim/Tilt Boost Pressure Engine Temperature Engine Hour Oil Pressure Oil Temperature Coolant Pressure Engine Load Transmission Oil Temperature Transmission Oil Pressure.
  • Tank: Tank Level 1-6.
  • Depth: Depth.
  • AIS: AIS (Max targets: 25 fixed 6NM range)
  • Voltage: Supply Voltage.
  • Enviroment: Date & Time Water Temperature Air Temperature Atmospheric Pressure Humidity Wind Chill Temperature Dew Point.

Display Modes

\"\"\"\"
