Furuno

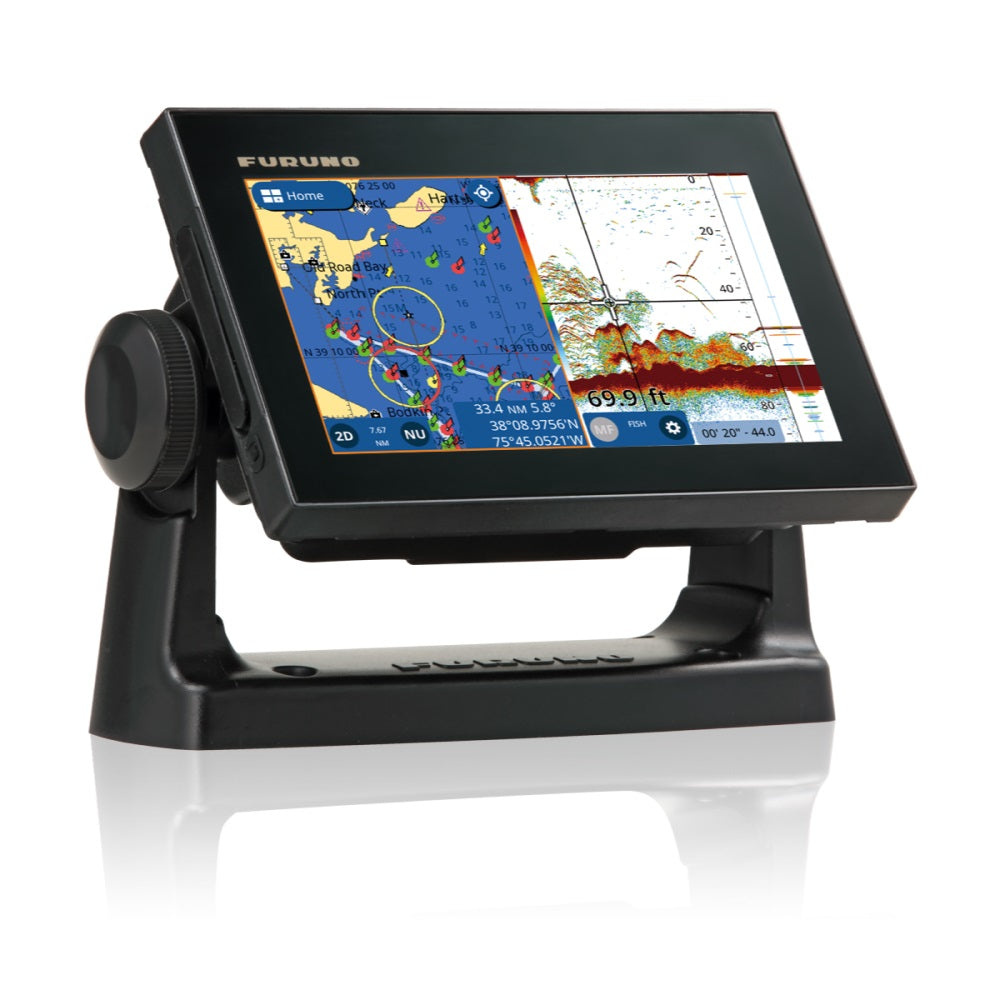

Furuno GP-1971F 9" Multi Touch GPS/WAAS Chart Plotter & Sonar

Furuno GP-1971F 9" Multi Touch GPS/WAAS Chart Plotter & Sonar

SKU:260-IMD034890AB

Regular price £1,549.20
Regular price Sale price £1,549.20
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • 9\" Touchscreen Multifunction Display
  • Simple operation with multi-touch interface
  • Compatible with DRS4W 1st Watch Wireless Radar
  • Powerful 1kW TruEcho CHIRP fishfinder
  • AR (Anti-Reflective) glass coating and strengthened glass filter
  • Internal GPS antenna for simple and easy installation
  • Daylight viewable with excellent readability brightness of 1000 cd/m2

Technical Specifications

X
Display
Type 9\" Wide Color TFT LCD
Screen Size 154 x 85 mm
Screen Resolution WVGA 800 x 480 pixels
Screen Brightness 1000 cd/m2 (typical)
Display Modes Chart Plotter
Fish Finder
Radar (Connection to the 1st Watch Wireless Radar DRS4W required)
AIS (Connection to AIS sensor required)
Instruments (Connection to external sensors Required: Nav Data Engine Wind Fuel tank Autopilot - Connection to the FURUNO NAVpilot-300 or 700 series required)
GPS status
Memory Capacity 30 000 points for ship\'s track and waypoints
1 000 planned routes (Max. 50 points per route)
5 000 quickpoints

GPS / WAAS
Receiver Type GPS: 72 channels
WAAS: 1 channel
Receiving Frequency L1(1575.42 MHz)
Time to First FIX 100s approx. (cold start)
Tracking Velocity 999 kn
SBAS(Satellite-based Augmentation System) WAAS EGNOS MSAS
Electronic Chart C-MAP 4D and Navionics
Accuracy GPS:10m Max
WAAS: 5m Max
MSAS: 7.5 m Max

Fish Finder
Frequency CW: 50/200 kHz
CHIRP: 40 to 225 kHz
Power Output 300 W or 600 W or 1 kW (Transducer dependent)
Range 5-1 200 m shift: 0-500 m
Modes TrueEcho CHIRP (CHIRP dedicated transducer required)
RezBoostTM (Dual frequency compatible transducer required)
ACCU-FISH (Dual frequency compatible transducer required)
Bottom Discrimination (Dual frequency compatible transducer required)
Auto gain (Fishing/Cruising)
Manual gain
A-Scope
Marker Zoom
Bottom Zoom
Bottom Lock
Picture Advance 8 steps (x4 x2 1/1 1/2 1/4 1/8 1/16 stop)

The GP-1971F smart interface inherited from the NavNet TZtouch2 features slide-out menus containing all the tools and data needed to be in total control. Customize the display modes and create the perfect combination to fit any individual needs. The Chart Plotter can use full-featured Navionics or C-Map 4D charts and includes a built-in TruEcho CHIRP as well as a conventional Fish Finder transmitting at 300W 600W or 1kW.

Multi Touch Interface

Convenient and intuitive slide-out menus - The GP-1871F/1971F smart interface inherited from the NavNet TZtouch2 features slide-out menus containing all the tools and data needed to be in total control.

Display modes customization - Customize the display modes and create the perfect combination to fit any individual needs.

Easy screenshot - Tap the display with 2 fingers to capture a screenshot that will be saved directly to a micro SD card.

Chart Plotter (With Internal GPS Antenna)

The Chart Plotter utilizes full-featured Navionics or C-Map 4D charts.

C-Map 4D empowers users with plenty of useful data that can overlay onto a rich vector chart such as relief vectors tidal streams and marine plans significantly boosting situational awareness. Creating routes and waypoints is as simple as touch-and-go. When connected to an AIS receiver See valuable AIS data on the display.

With the new Version 4.0 software Navionics charts with features such as refined depth contouring and relief shading and enhanced viewing angles including 3D and Panoramic modes can be utilized. Plus users can quickly and easily update the chart content using the Navionics Chart Installer app for PC!

Built-In CHIRP & Conventional Fish Finders

The unit includes a built-in TruEcho CHIRP as well as a conventional Fish Finder transmitting at 300W 600W or 1kW. Simply tell the unit what transducer is connected and it will select the type of Fish Finder to use. The TruEcho CHIRP transmits across a spectrum of frequencies delivering an incredible amount of detail and clearly marking individual game fish and bait fish. The conventional Fish Finder includes RezBoost data processing for an ultra-crisp high-resolution picture. Other features include ACCU-FISH fish size assessment and the highly useful Bottom Discrimination function to help find the most productive fishing grounds.

Wireless Radar Connectivity

The radar can be overlayed onto the Chart Plotter display via a wireless connection to the Furuno DRS4W 1st Watch Wireless Radar. The DRS4W’s wireless configuration makes it a breeze to add the compact 19\" Radar dome to any vessel. The DRS4W can also display the Radar presentation on a connected smartphone or tablet offering a major upgrade in safety and versatility.

Autopilot Control

Via the CAN bus network interface The NAVpilot 300 and NAVpilot 711C can be connected to the GP1971F and controlled directly from the Chart Plotter.

In The Box

  • 1 X GP-1971F Plotter
  • 1 X Power cable
  • 1 X Fastener Kit
  • 1 X Stirrup
  • 1 X Wheels
  • 1 X Protective cover
  • 1 X User Manual
  • 1 X Cutting template for embedding
