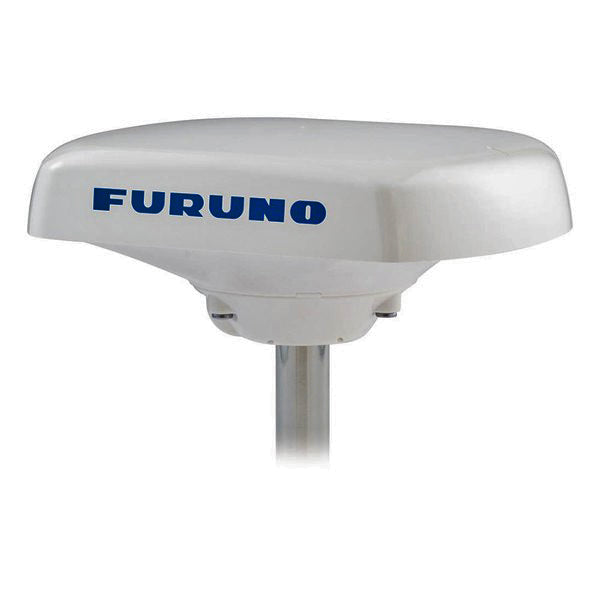

Furuno SCX-21 NMEA 0183 Satellite Compass - Pole Mount

Furuno SCX-21 NMEA 0183 Satellite Compass - Pole Mount


Regular price £1,032.00
Regular price Sale price £1,032.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Frequency: 1575.42 MHz (GPS/Galileo/QZSS/SBAS) 1602.5625 MHz (GLONASS)
  • Tracking code: C/A (GPS/QZSS/SBAS) E1B (Galileo) L1OF (GLONASS)
  • Heading Accuracy: Heading/Roll/Pitch: 1.0° rms (static) 0.5° rms (dynamic)
  • Follow-up: 45°/sec
  • Settling time: 60 seconds approx.
  • Position Accuracy: GPS: 5m approx. (2 drms HDOP < 4) MSAS: 4m approx. (2 drms HDOP < 4) WAAS: 3m approx. (2 drms HDOP < 4)
  • Temperature: -25°C to +55°C (storage: -30°C to 70°C)
  • Waterproofing: IP56
  • Power Supply: 12-24 VDC: 0.2-0.1A
Quad-antenna design for extreme accuracy

Utilizing four separate GNSS Antennas for the ultimate in responsiveness the SCX-21 sets a new standard for reliable and accurate heading for all of your marine electronics. Traditionally a Satellite Compass™ calculates heading using one baseline between two antennas; the SCX-21 four antennas can calculate heading information using any one of the six baselines drawn between the four antennas. The unprecedented quad-antenna design of the SCX-21 makes it capable of calculating extremely accurate heading pitch roll and heave information. It is the perfect heading solution for complex vessel installations where the view of satellites may sometimes be obstructed.

Superior accuracy for all your sensors
The SCX-21 enhances the performance of on-board equipment such as Radar Fish Finders Sonar and Autopilots. Accurate heading information empowers your NAVpilot to keep a better course saving time fuel and money on every voyage; meanwhile precise pitch roll and heave information stabilizes the display for many Furuno Fish Finders and Sonars allowing for an accurate presentation even in the roughest of seas.

Radar Plotter
True echo trails are available when the SCX-21 is connected to your Furuno Radar helping to determine own ship’s movement as well as the movement of other vessels. Accurate speed and heading data ensures that target trails are displayed smoothly and accurately without the jagged zig-zag appearance common to compasses with a higher degree of deviation.

Fish Finder
Even in heavy seas accurate heave compensation from SCX-21 enables Fish Finders such as the FCV-1150 or NavNet TZtouch/TZtouch2/TZtouch3 to show you an unwavering presentation of the seabed without the undulations caused by sea conditions.

Accurate pitch and roll information allows Furuno Sonar systems to display a steady image on the screen even in foul weather.

Relay Critical Data
Effortlessly connect with existing Furuno systems in order to elevate your awareness of own vessel and the surrounding area by displaying critical information across several products including NavNet TZtouch MFDs* FI-70* and GP-39! Initial setup can be done from GP-39.
