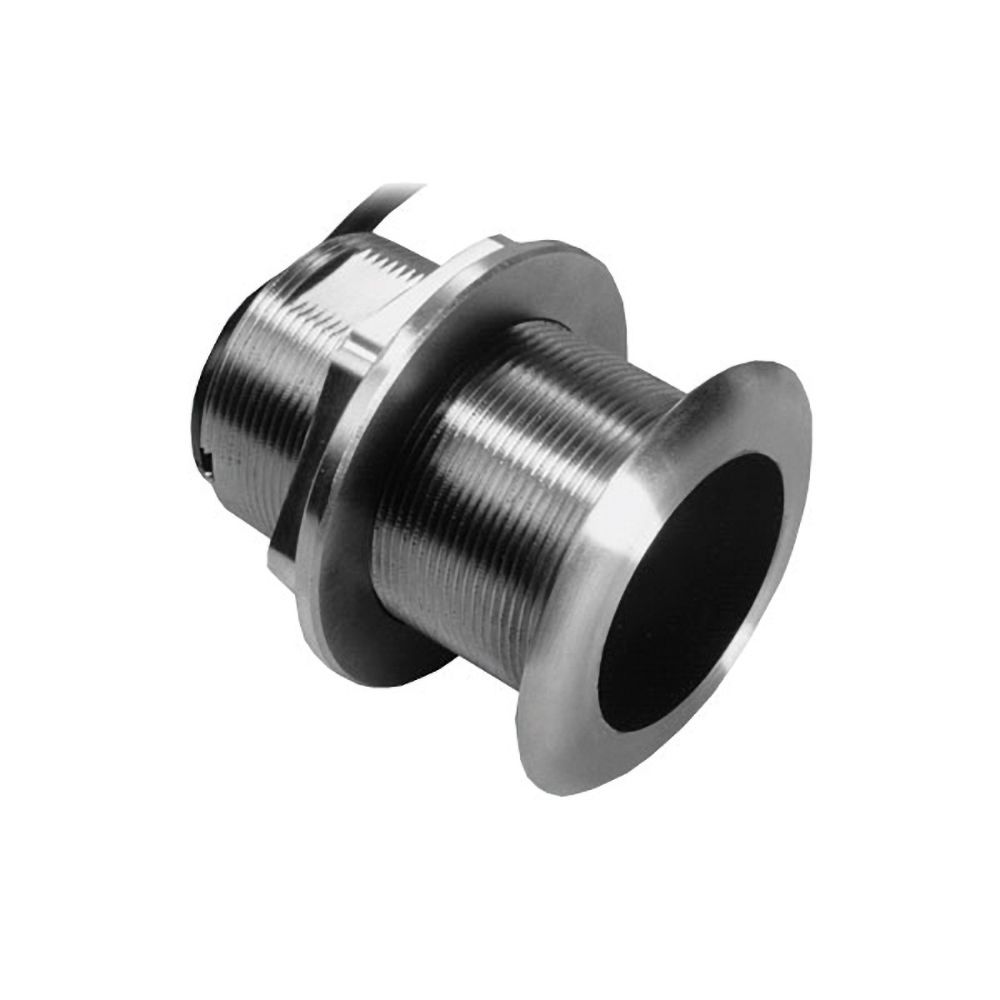

Garmin Airmar SS60 12° Tilt 8 Pin Stainless Steel Thru-Hull transducer

• Fixed 12° tilted version for 8° to 15° hull deadrise
• Depth and water temperature
• 600 W
• Dual-frequency elements:
  • 50 kHz with a wide 45° beam for performance to 353 m (1200\')
  • 200 kHz with a 12° beam for performance to 206 m (700\')
• Perfect for center-console trailered boats
• Low-profile protrusion below the hull - only 3/16\" (.476 cm) extends outside the hull
• No affect on the boats running performance
• Stainless steel transducer housing for use on all hull materials
• Recommended boat size: Up to 8 m (25\')

This stainless steel 600 W 8-pin transducer provides a vertical beam without a fairing and is excellent for fiberglass and wood hulls. It has a depth of 800 to 1 200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45/12 degrees; and an 8 to 15 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging the boat.
