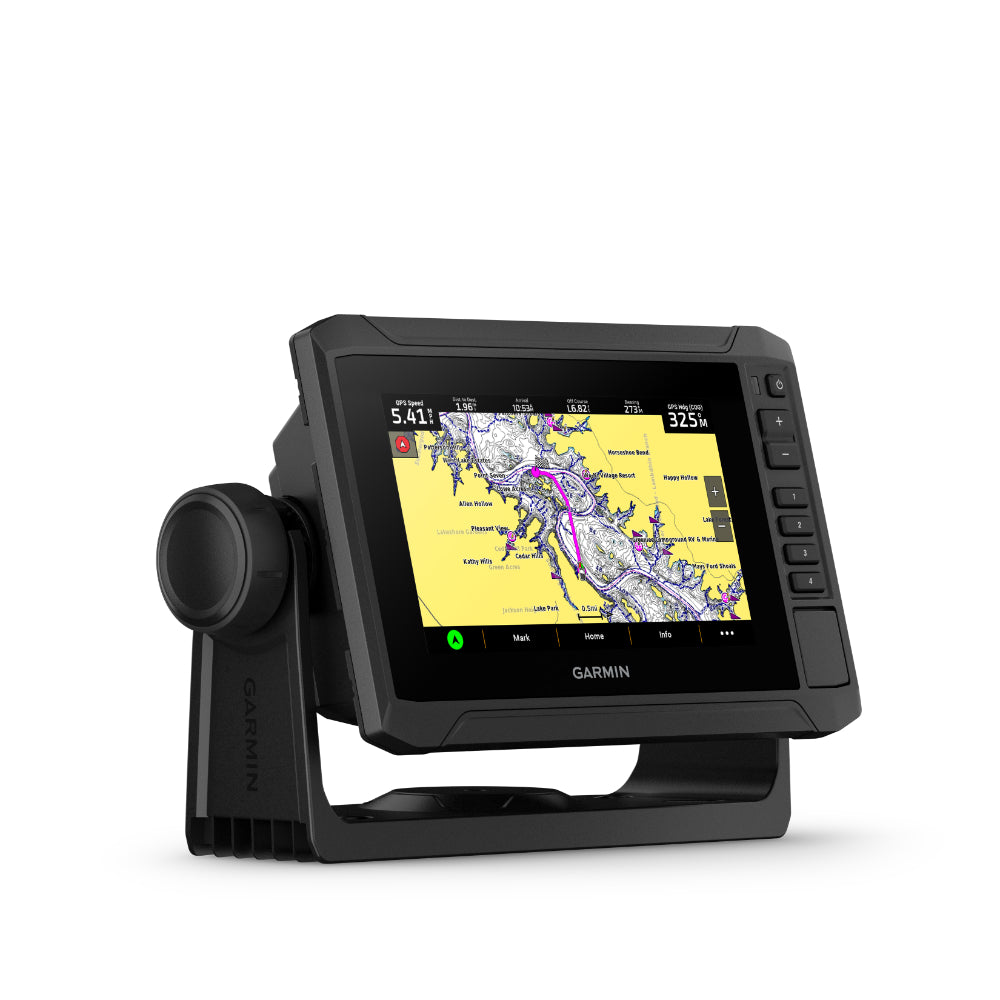

Garmin ECHOMAP UHD2 Touch 65sv Chartplotter

Garmin ECHOMAP UHD2 Touch 65sv Chartplotter

SKU:230-0100268210

Regular price £829.99
Regular price Sale price £829.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • The bright 6\" touchscreen display with keyed-assist is user-friendly and easy to read
  • Good things come in threes. Supports three sonar types: Garmin traditional ClearVü and SideVü sonars
  • Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid colour palettes
  • Wirelessly share sonar waypoints and routes with another ECHOMAP UHD2 chartplotter
  • Comes preloaded with Garmin Navionics+ mapping for U.K. Ireland and the Netherlands.

Technical Specifications

X
General
Dimensions 20.6 x 13.1 x 6.7 cm (5.4\" x 5.2\" x 2.6\")
Input Touchscreen with Keyed Assist
Display Size 13.8 x 7.8cm 15.7cm Diagonal (5.4\" x 3.1\" 6.2\" Diagonal)
Display Resolution 800 x 480 Pixels
Display Type WVGA TN
Weight 0.8Kg (1.8lbs)
Water Rating IPX7
Mounting Options Bail or Flush

Maps & Memory
Accepts Data Cards 1 MicroSD Card Max 32GB
Waypoints 5 000
Track Points 50 000
Tracks 50 Saved Tracks
Navigation Routes 100

Sensors
Has Built-In Receiver
Receiver 10Hz
NMEA 2000 Compatible
GPS
GLONASS
GALILEO
BEIDOU
Supports WAAS
Supports Multi-Band Multi Constellation GPS

Built-in Maps
Built-in Auto Guidance+ Yes (Via ActiveCaptain App)
Garmin Navionics+ Inland & Coastal Yes
Garmin Navionics+ (Coastal) Yes
Garmin Navionics+ (Inland) Yes
Tide Tables Yes

Optional Map Support
Garmin Navionics+
Garmin Navionics Vision+
TOPO
Standard Mapping
Garmin Quickdraw Contours

Chartplotter Features
AIS
DSC
Fusion-Link Compatible
ActiveCaptain App Compatible
Sailing Features

Sonar Features & Specifications
Displays Sonar
Power Output 500W
Traditional Sonar Built-in (Single Channel CHIRP 50/77/83/200 kHz L.M.H CHIRP)
ClearVu Built-in (260/455/800/1000/1200 kHz)
SideVu Built-in (260/455/800/1000/1200 kHz)
Panoptix Sonar
LiveScope

Connections
NMEA 2000 Ports
Garmin Marine Network Ports 1
12 Pin Transducer Ports 1
Bluetooth Calling
ANT+ Connectivity
Garmin Wi-Fi Network

Electrical Features
Power Input 9 - 18 Vdc
Typical Current Draw at 12 Vdc 1.53A
Max Current Draw at 12Vdc 3.2A
Max Power Usage at 10 Vdc 18.4W

Know The Water Better Than A Local

When it comes to catching more fish they say \"talk to a local.\" With the ECHOMAP UHD2 chartplotter which offers support for Garmin\'s best-in-class sonar built-in Garmin Navionics+ for U.K and Ireland and a premium touchscreen display with keyed-assist know the water even better than they do.

It Doesn\'t Get Any Better Than This

Sonar Support - With support for crisp clear traditional sonar and brilliant ClearVü and SideVü scanning sonars the fish will have nowhere to hide. The ECHOMAP UHD2 also supports LiveScope live-scanning sonar.

Vivid Colour Palettes - High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.

Preloaded Charts - Chartplotters come with built-in Garmin Navionics+ cartography for U.K. Ireland and the Netherlands which includes a 1-year subscription for daily updates raster cartography and more.

Wireless Networking - Wirelessly share information such as sonar waypoints and routes with another compatible ECHOMAP UHD2 chartplotter on the boat.

ActiveCaptain App - Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature smart notifications software updates Garmin QuickDraw Community data and more.

Auto Guidance Technology - Built-in Garmin Navionics+ charts for U.K. Ireland and the Netherlands include downloadable Auto Guidance+ technology with the ActiveCaptain app.

Troll With Force - The ECHOMAP UHD2 chartplotter wirelessly connects to Garmin Force Trolling Motors to create and follow routes navigate to waypoints control speed check battery life and more.

Multi-Band GPS - Get improved position accuracy particularly in areas where signals are reflected or weak with multi-band GPS.

In The Box

  • ECHOMAP UHD2 65sv
  • 12-pin sounder to 8-pin transducer cable
  • Power cable
  • Tilt/swivel mount with quick release cradle
  • Protective cover
  • Hardware
  • Documentation
