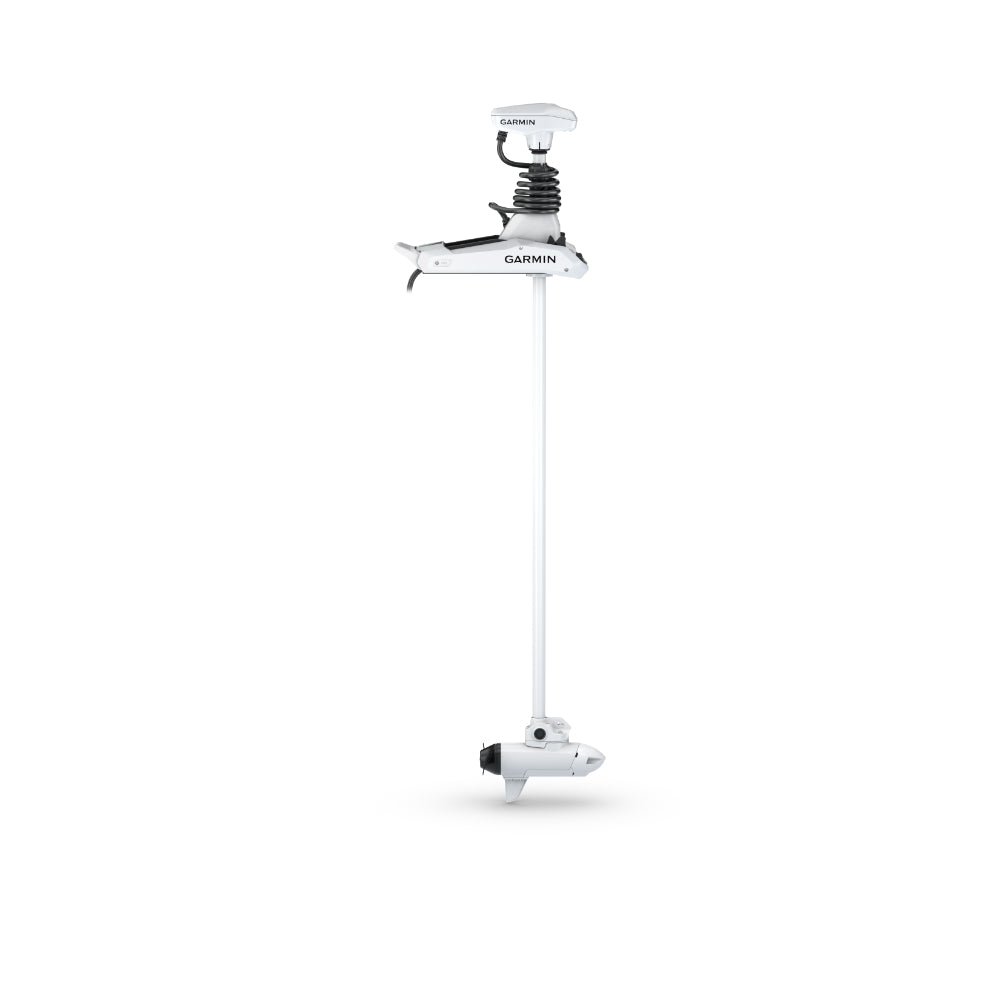

Garmin Force Kraken Trolling Motor - White 75"
Garmin Force Kraken Trolling Motor - White 75"
SKU:230-0100257410
Couldn't load pickup availability
- The Industry’s most powerful trolling motor; 100 lbs of thrust
- Wireless integration with Garmin chartplotters
- Stay on the fish with anchor lock and multi-band GPS
- Pivot-style mount for easy installation
- 75″ shaft length (63\" & 90\" Versions also available)
- Seamless cable integration with livescope sonar
Technical Specifications
X| General | |
|---|---|
| Colour | White |
| For Use In | Freshwater Brackish Water and Saltwater |
| Mount Style | Pivot-style mount |
| Max Thrust | 100lbs (per ISO 13342 with high efficiency prop at 36v) 80lbs (per ISO13342 with high efficiency prop at 24v) |
| Voltage | 24V or 36V DC |
| Electric Steering | ✓ |
| Built-In Heading Sensor | ✓ |
| Built-In GPS | Yes (dual Frequency GPS) |
| Warranty | 3-Year Limited lifetime on shaft |
| Water Rating | IPX7 |
| Mounting Location | Bow |
| Wireless Remote | Yes (included) |
| Foot Pedal Compatible | ✓ |
| Battery Indicator | ✓ |
| Variable Speed Control | Yes (20 steps) |
| Lighted Direction Indicator | ✓ |
| Quatix Remote Control Supported | ✓ |
| Sonar Features & Specifications | |
|---|---|
| LiveScope Cable Integration | Yes (Livescope transducer and Kraken Mounting Bracket required) |
| AutoPilot Features | |
|---|---|
| Route Following | ✓ |
| Anchor Lock | ✓ |
| Anchor Lock Jog | ✓ |
| Heading Hold | ✓ |
| Cruise Control | ✓ |
| Gesture Features | Yes (Manual+ Heading hold+ Jog+) |
| Foot Pedal Features | |
|---|---|
| Dimensions | 12\" x 9\" x 4.5\" |
| Wireless Communication | ✓ |
| Power Installation | 12V/24V/36V Wired or Battery Powered (2xAA) |
| AA Battery Life | 1 Full season |
| Water Rating | IPX7 |
| Adjustable Pedal Resistance | ✓ |
| Remote Features | |
|---|---|
| Display Size | 30.4mm diameter (1.2\") |
| Display Resolution | 240 x 240 pixels |
| Display Type | Colour sunlight-visible transflective memory-in-pixel (MIP) |
| Chartplotter User-Programmable Keys | ✓ |
| AutoPilot Feature Control | ✓ |
| Water Rating | IPX7 |
| Battery Life | 43.2 weeks (Typical use with low backlight) |
| Floats | ✓ |
There’s A New Legend To Behold
The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.
What You\'ll Love
High powered - With 100 lbs of thrust Force Kraken is the most powerful trolling motor on the market.
Power that lasts - Efficient brushless motor design has longer run times than brushed motors and allows users to focus on fishing - and not running out of battery.
Whisper quiet - Don’t spook the fish; the motor is extremely quiet above and below the water.
Purpose-Built Design - This trolling motor is optimised to operate in rough open-water conditions at either 24 or 36 volts thanks to the powerful and efficient brushless motor design.
Designed to endure - The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.
Perfect for deep V Hulls - Get easy installation where bow space is limited thanks to the pivot-style mount. The 63″ 75″ & 90\" shaft lengths accommodate many different boat sizes and deck configurations.
Total Control
Stay put - The anchor lock provides Garmin\'s most precise boat positioning technology to help keep the boat in one place.
Floating Remote - Use the included remote to help navigate from anywhere in the boat with simple point and go technology.
Smartwatch integration - Connect a compatible Garmin smartwatch to control steering anchor lock and more.
Wireless integration - Connect to a compatible chartplotter to create and follow routes for the trolling motor to follow while fishing.
Whisper Quiet - Don\'t spook the fish; the motor is extremely quiet above and below the water
In The Box
- Force Kraken Trolling motor
- Remote
- High efficiency propeller
- Assembly and mounting hardware
- Documentation
