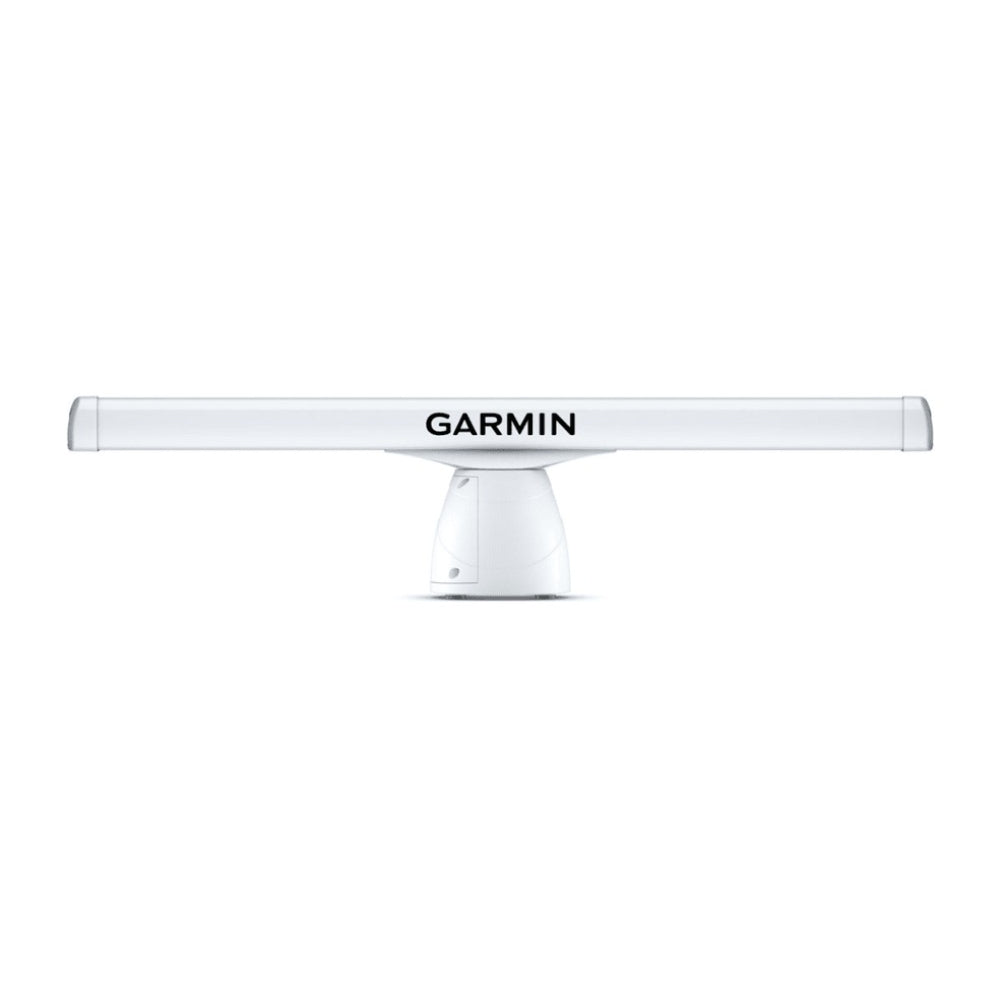

Garmin GMR 2536 xHD3 6' Open Array Radar 25kW Pedestal & 15M Cables
Garmin GMR 2536 xHD3 6' Open Array Radar 25kW Pedestal & 15M Cables
SKU:230-K100001229
Couldn't load pickup availability
- 25kW Output Up to 96 nautical mile range
- Scan averaging technology
- Improved target size processing
- Split screen dual range display
- 100-Knot commercial grade wind rating
- Quiet open-array drive motor
Technical Specifications
X| General | |
|---|---|
| Dimensions | 6\' array: 1938 x 122 x 170mm (76.5\" x 4.8\" x 6.7\") Pedestal: 520 x 328 x 314mm (20.5\" x 12.9\" x 12.4\") |
| Weight | 30.4Kg |
| Waterproof Rating | IPX6 |
| Max Wind Load | 100kts |
| Antenna Length | 183cm (72\") |
| Rotation Speed | 24 & 48rpm |
| Beam Width | 1.1° horizontal 23° vertical |
| Maximum range | 96nm |
| Minimum range | 20 metres |
| Radar Type | Open-Array |
| Electrical Features | |
|---|---|
| Power Input | 10 - 32V DC |
| Power Consumption (Standby) | 18W |
| Typical Power Conumption | 70W (Normal Mode) |
| Transmit Power | 25kW |
| Radar Features | |
|---|---|
| Dual Range | ✓ |
| Overlay | ✓ |
| Dual Radar Support | ✓ |
| Auto Bird Gain | ✓ |
| Auto Gain | Dynamic |
| MARPA Target Tracking | Yes (Requires heading sensor sold separately) |
| Echo Trails | True |
| Programmable Antenna Parking | ✓ |
| Target Size | ✓ |
| Scan Averaging | ✓ |
Scan With The Magnetron Power of Garmin Open-Array Radar
Combining high-definition imaging with the latest Garmin platform technology these robust 4’ and 6’ open-array radars offer superior weather obstacle and traffic detection for mariners cruising or fishing offshore.
Top Features
New scan averaging technology - A first for Garmin magnetron radar scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.
Angular target-size adjustment - Pulse expansion and angular target-size processing techniques optimise on-screen object shapes for better interpretation at all range scales.
High-performance antennas - The 100-knot wind-rated open-array antennas1 have rotation speeds of 24 and 48 RPM for fast redraw rates with max range up to 96 nautical miles on the 25-kW versions (up to 72 nautical miles on the 4 and 12kW versions).
True echo trails - A historical \"trail\" of boats on the water is displayed on the screen removing relative motion influence to help you quickly identify moving targets and potential collision threats.
Dual range with overlay - A single radar antenna is capable of providing split-screen side-by-side images on your compatible chartplotter with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.
Dynamic auto gain - Gain automatically adjusts levels to optimum settings for harbours near shore and offshore in open waters.
View Targets With Superior Clarity And Detail
Radar overlay - See overlaid images on your chartplotter\'s map screen (with appropriate sensors sold separately).
High-resolution radar - Pick out targets at a distance thanks to narrow horizontal beamwidth and high antenna gain.
Dual-radar support - This provides redundancy and allows each display unit to pull data from different sources.
Dynamic sea filter - Radar gain automatically adjusts sea clutter for calm medium and rough sea conditions.
Auto bird gain - Locate flocks of birds at the water\'s surface where baitfish are also likely to be found.
MARPA target tracking - Track up to 30 targets to help avoid collisions (with appropriate sensors sold separately).
Guard zone - Set the safety zone and receive an alarm when an object enters the zone.
Range and bearing cues - Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.
In The Box
- GMR xHD3 25kW open array radar with 4’ antenna
- Power cable (15 m/49.21 ft)
- Network cable (15 m/49.21 ft)
- Mounting hardware kit and template
- Installation instructions
