Garmin

Garmin GMR18 xHD Radar Radome with 15m Cable

Garmin GMR18 xHD Radar Radome with 15m Cable

SKU:230-0100095900

Regular price £1,799.99
Regular price Sale price £1,799.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour

Specifiactions

  • Physical dimensions 50.8 cm diameter 24.8 cm high
  • Weight 7.7 kg
  • Water rating IPX7
  • Antenna length 17\" (43.18 cm)
  • Power consumption 30 W typical; 48 W max
  • Rotation speed (RPM) 24/48 rpm (dual rotation)
  • Transmit power 4 kW
  • Power input 10.5-35 V DC 33.5 W
  • Beam width 5.2° horizontal 25° vertical
  • Maximum range 48 nm
  • Minimum range 20 meters
  • Radar type Radome

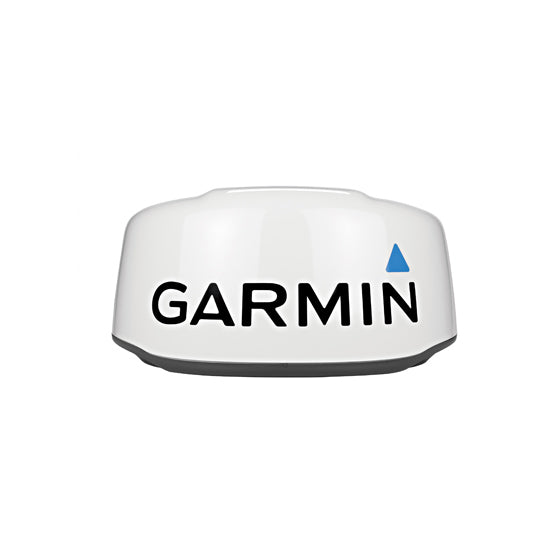

Our next-generation 4 kW high-definition Garmin GMR 18 xHD dome radar pairs ease of use with advanced open-array features. Its intuitive operation makes modes and settings simple to understand so you can enjoy great performance without a lot of technical know-how.

The GMR 18 xHD delivers higher resolution than our previous generation 18\" dome radars. New Dynamic Auto Gain and Dynamic Sea Filter continually adjust to your surroundings providing optimal performance in varying conditions. Choose from multiple levels of aggressiveness or use manual gain adjustment. Dual range operation allows fully independent split-screen display of far and close radar views in full 8-bit colour (select chartplotters); range of 48 nm.

\"No Transmit Zone\" protects areas behind the radar from being radiated while providing full forward-looking radar capability. This makes installation more flexible by providing more suitable installation options on your boat.

In The Box

GMR 18 xHD Mounting hardware kit Power cable (15 m) Network cable (15 m) Installation instructions Mounting template Grommet for marine cable.
