Garmin

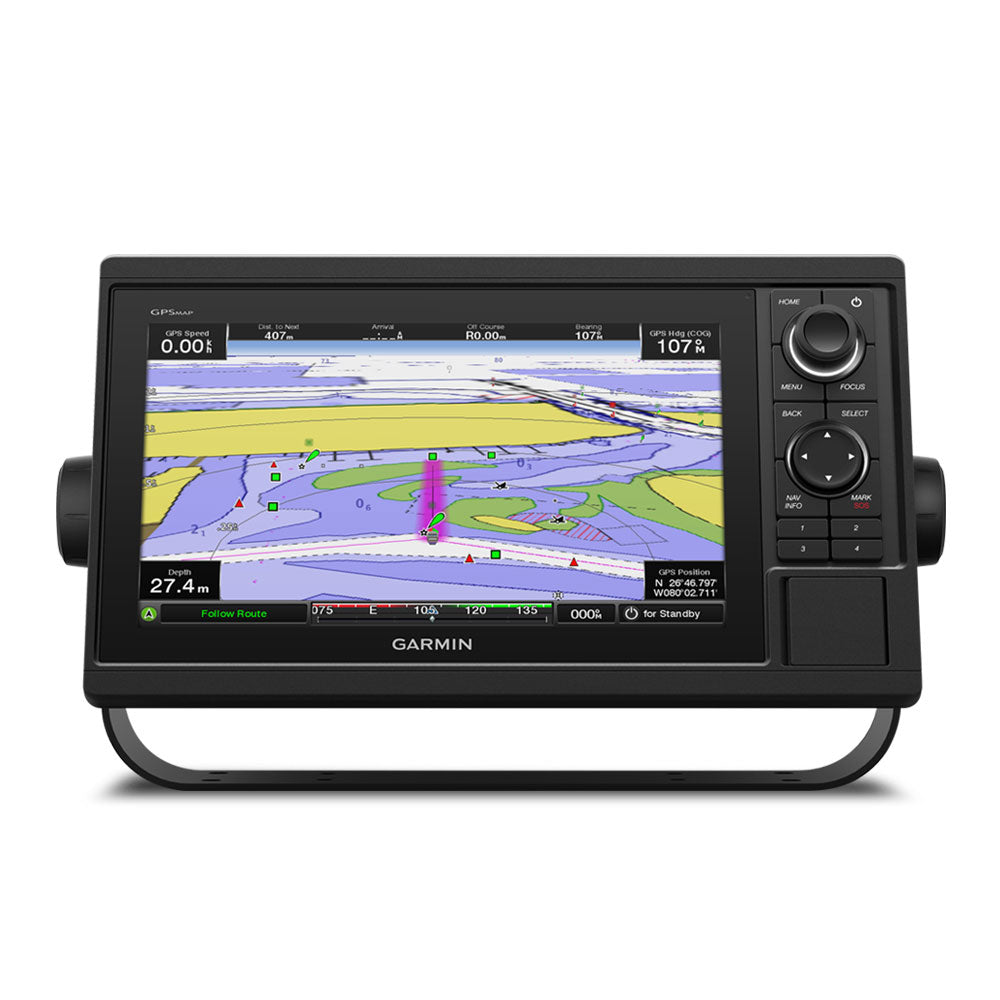

Garmin GPSMAP 1022 Chartplotter Only

Garmin GPSMAP 1022 Chartplotter Only

SKU:230-0100174000

Regular price £1,450.70
Regular price Sale price £1,450.70
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • 10-inch colour display with keypad interface and multifunction control knob
  • High-sensitivity internal 10 Hz GPS and GLONASS receiver
  • Fully network capable for Garmin Marine Network and NMEA 2000 plus NMEA 0183 support
  • Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features

Garmin GPSMAP 1022xsv Technical Specifications

X
General
Dimensions 31.8 x 18.5 x 6.9 cm
Input Keyed
Display Size 22.4 x 12.5 cm; 10.1\" (25.7 cm) diagonal
Display Resolution 1024 x 600 pixels
Display Type WSVGA Display
Weight 1.85 kg
Waterproof Rating IPX7
Mounting Options Bail or flush

Maps & Memory
Data Card Slots 2 SD Cards
Waypoints 5 000
Track Points 50 000
Tracks 50 Saved Tracks
Navigation Routes 100

Sensors
Has Built-In Receiver
Receiver 10 Hz High-sensitivity
NMEA 2000 Compatible
NMEA 0183 Compatible
GPS
GLONASS
Supports WAAS

Built-In Maps
Tide Tables

Optional Map Support
LakeVÜ G3
LakeVÜ G3 Ultra
Garmin Navionics+
Garmin Navionics Vision+
Topo
Standard Mapping
Garmin Quickdraw Contours
Raster Chart Support

Chartplotter Features
Garmin Smartmode Compatible
AIS
DSC
Supports Fusion-Link Compatible Radios
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain Mobile Planning Compatible
GRID (Garmin Remote Input Device) Compatible
Wireless Remote Compatible
Sailing Features

Sonar Features & Specifications
Displays Sonar
Traditional Sonar (Dual Frequency / Beam) Yes (With External Black Box Sonar Sold Separately
ClearVÜ Yes (With External Black Box Sonar Sold Separately
SideVÜ Yes (With External Black Box Sonar Sold Separately
Panoptix Sonar
Livescope

Connections
NMEA 2000 Ports 1
NMEA 0183 Input Ports 1
NMEA 0183 Input (TX) Ports 1
Video Input Ports 1 BNC
Video Output Ports None
Garmin Marine Network Ports 2
Bluetooth Calling
ANT+ Connectivity
Garmin Wi-Fi Network

Electrical Features
Power Input 10 to 32 Vdc
Typical Current Draw at 12VDC 1.9A
Maximum Current Draw at 12VDC 2.7A
Maximum Power Usage at 10VDC 32.4W

Includes wireless connectivity features for Garmin mobile apps NMEA 2000 support and Garmin Marine Network support for radar and Panoptix FrontVü collision avoidance sonar.

Garmin Marine Network and NMEA 2000 Support
Full-network compatibility allows you to add more capabilities to your boat. Garmin Marine Network support allows sharing of sonar including Panoptix FrontVü collision avoidance sonar maps user data dome or open-array radar and IP cameras among multiple units. Plus there’s NMEA 2000 network connectivity and NMEA 0183 support for autopilots digital switching weather FUSION-Link VHF AIS and other sensors.

Built-in ANT® Connectivity
Enjoy built-in ANT wireless connectivity directly to quatix® marine watch Garmin Nautix™ in-view display gWind™ Wireless 2 transducer GNX™ Wind marine instrument and wireless remote controls.

The Ultimate Connected Boating App
Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter charts maps and the boating community. Wherever you are you’ll have unlimited access to your cartography the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates and decide when to download them on your device.

Heading Position Refreshed 10 Times per Second
Fast responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5 000 accurate waypoints — and finding your way back to them — quick and easy.

Built-in Sail Assist Features
To help you gain a wind-maximising competitive edge your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines time to burn before the start and a race timer that can be synchronised across all your networked Garmin GPS products. In addition other supported sailing features include an enhanced wind rose heading and course-over-ground lines set and drift true and apparent wind data and more.

GPX Waypoints Transfer
If you have waypoints tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

Garmin BlueChart
The GPSMAP 1022 chartplotter Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features.
Two SD™ card slots provide expandable memory for accessory map purchases such as BlueChart® g2 HD or BlueChart® g2 Vision® HD which adds Garmin patented Auto Guidance¹ and other great features.

In The Box

  • GPSMAP 1022 chartplotter
  • Power cable
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
