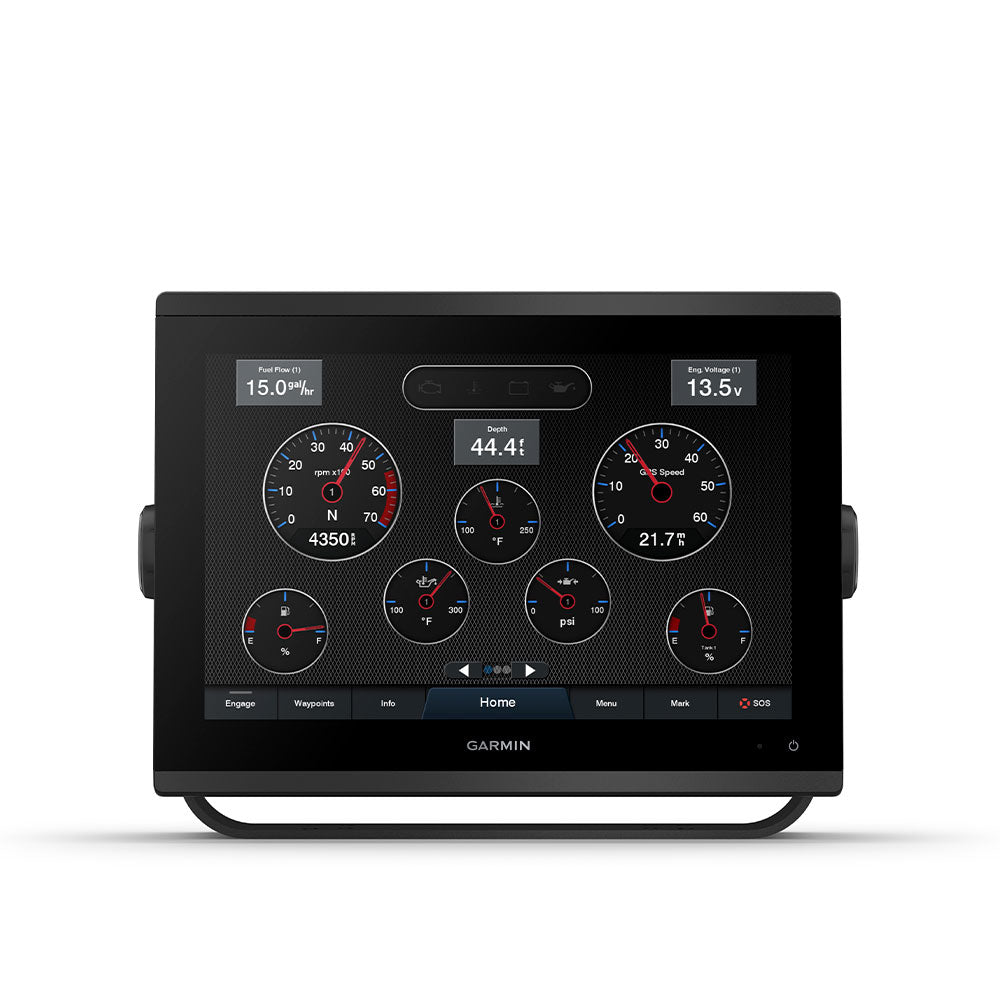

Garmin GPSMAP 1223 - Chartplotter Only
Garmin GPSMAP 1223 - Chartplotter Only
SKU:230-0100236700
Couldn't load pickup availability
- Easily integrate with more engines
- Connect to compatible third-party devices with OneHelm digital switching
- Easily build your marine system using the best of network connectivity
- Navigate any waters with preloaded mapping and coastal charts
- See below your boat with built-in sonar capabilities
- Manage your marine experience from nearly anywhere
Technical Specifications
X| General | |
|---|---|
| Dimensions | 30.8 x 22.8 x 8.2 cm (10.3\" x 6.4\" x 12.1\") |
| Input | Touchscreen |
| Display Size | 26.2 x 16.3 cm 30.7 cm (12.1\") Diagonal |
| Display Resolution | 1280 x 800 pixels |
| Display Type | WXGA Display |
| Weight | 3Kg |
| Water Rating | IPX7 |
| Mounting Options | Bail or Flush |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 2 microSD Cards (back of unit) |
| Waypoints | 5 000 |
| Track Points | 50 000 |
| tracks | 50 Saved Tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| Built-in Receiver | ✓ |
| Receiver | 10 Hz High-sensitivity |
| NMEA 2000 Compatible | ✓ |
| NMEA 0183 Compatible | ✓ |
| GPS | ✓ |
| GLONASS | ✓ |
| GALILEO | ✓ |
| Supports WAAS | ✓ |
| Built-in Maps | |
|---|---|
| Built-in Auto Guidance | ✓ |
| BlueChart (Coastal) | ✓ |
| LakeVu (Inland) | ✓ |
| Tidetables | ✓ |
| Optional Map Support | |
|---|---|
| LakeVu G3 | ✓ |
| LakeVu G3 Ultra | ✓ |
| Garmin Navionics+ | ✓ |
| Garmin Navionics Vision+ | ✓ |
| TOPO | ✓ |
| Standard Mapping | ✓ |
| Garmin Quickdraw Contours | ✓ |
| Raster Chart Support | ✓ |
| Chartplotter Features | |
|---|---|
| Garmin Smartmode Compatible (Customisable Monitor Presets) | ✓ |
| AIS | ✓ |
| DSC | ✓ |
| Fusion-Link | ✓ |
| GSD Black Box Sonar Support | ✓ |
| GCV Black Box Sonar Support | ✓ |
| ActiveCaptain App Compatible | ✓ |
| GRID (Garmin Remote Input Device) Compatible | ✓ |
| Wireless Remote Compatible | ✓ |
| Sailing Features | ✓ |
| Spoken Audo Alerts | ✓ |
| OneHelm Support | ✓ |
| Sonar Features & Specifications | |
|---|---|
| Displays Sonar | ✓ |
| Traditional Sonar | Yes (With Separate GCV Black Box Sonar) |
| ClearVu | Yes (With Separate GCV Black Box Sonar) |
| SideVu | Yes (With Separate GCV Black Box Sonar) |
| Panoptix Sonar | ✓ |
| Livescope | ✓ |
| Connections | |
|---|---|
| NMEA 2000 Ports | 1 |
| NMEA 0183 Input Ports | 1 |
| NMEA 0183 tx Ports | 1 |
| Video Input Ports | 1 BNC |
| Video Output Ports | 1 HDMI |
| J1939 Ports | 1 |
| Garmin Marine Network Ports | 2 |
| USB Ports | ✓ |
| BNC External GPS Antenna Ports | ✓ |
| Bluetooth Calling | ✓ |
| ANT+ Connectivity | ✓ |
| Garmin Wi-Fi Network | ✓ |
| Electrical Features | |
|---|---|
| Power Input | 10 - 32 VDC |
| Typical Current Draw at 12V | 1.67A |
| Max Current at 12V | 2.16A |
| Max Power Use at 10V | 26.5W |
Get A Sharper View From Your Connected Helm
Panoptix Sonar Support
Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
Faster Sharper Smarter
With its ultrasleek design vivid sonar colour palette and high-resolution 12-inch in-plane switching display this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.
Optional Bluechart G3 Vision Charts
These optional charts offer the best of Garmin and Navionics data Auto Guidance3 technology and other premium navigation features.
Garmin Marine Network
If you have multiple compatible Garmin devices on your boat you can share information — such as maps user data radar and IP camera video — among them.
NMEA 2000 and NMEA 0183 Networks
Connect to compatible autopilots digital switching weather Fusion-Link audio system media VHF AIS and more from one screen.
Activecaptain App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature smart notifications software updates Garmin Helm digital switching Garmin Quickdraw Community data and more.
Integrated ANT Technology
Connect with some of your favourite devices such as quatix marine watches gWind Wireless 2 transducers GNX Wind marine instruments and wireless remote controls.
J1939 Connectivity
Now you can connect your chartplotter to different kinds of engines including select Yamaha engines.
Onehelm Feature
This exclusive feature brings together all the operations and capabilities of select third-party devices such as EmpirBus digital switching on one screen.
In The Box
- GPSMAP 1223 chartplotter
- microSD card preinstalled
- Power cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 metres)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
