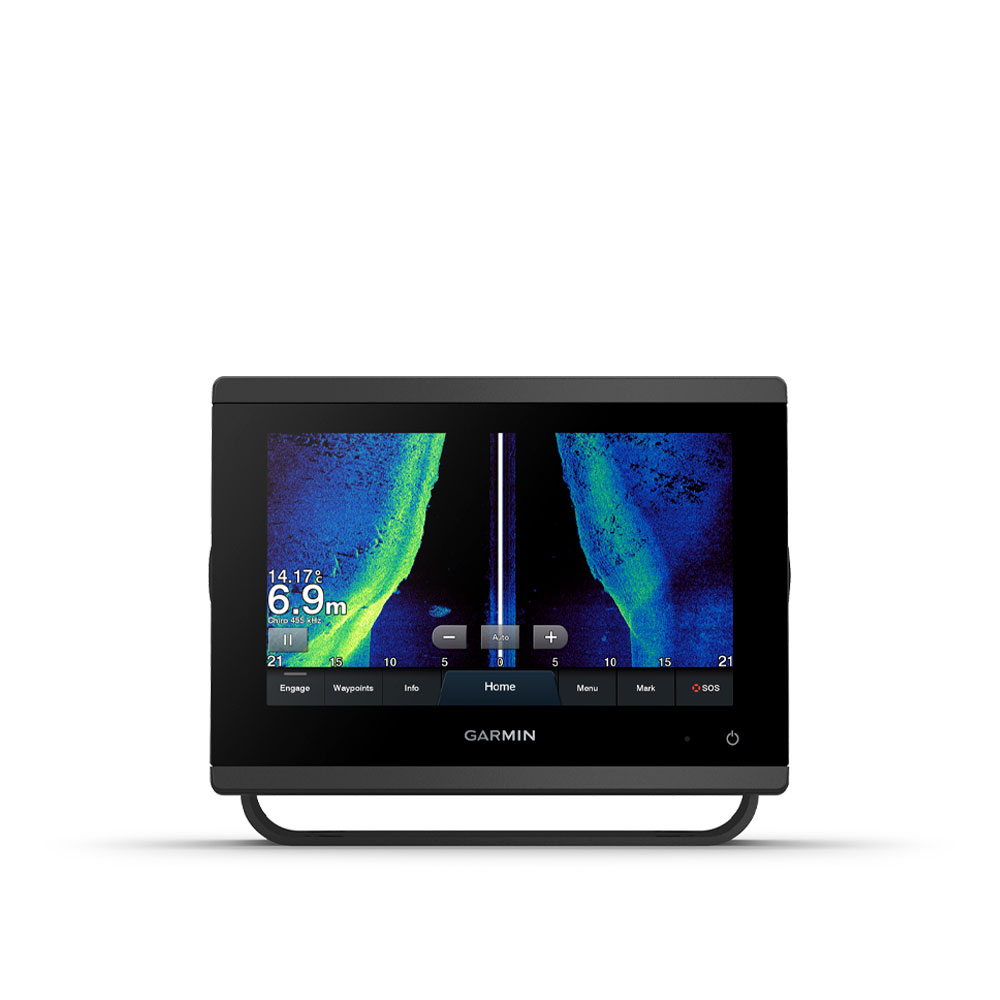

Garmin GPSMAP 723xsv - Chartplotter & Sonar

Garmin GPSMAP 723xsv - Chartplotter & Sonar

SKU:230-0100236502

Regular price £961.19
Regular price Sale price £961.19
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • Easily integrate with more engines
  • Connect to compatible third-party devices with OneHelm digital switching
  • Easily build a marine system using the best of network connectivity
  • Compatible with premium maps and charts for the best in Garmin navigation
  • Take the guesswork out of sailing with clear laylines and more - right on the screen
  • Manage the marine experience from nearly anywhere

Technical Specifications

X
General
Dimensions 19.2 x 14 x 7.4CM (7.6\" x 5.5\" x 2.9\")
Input Touchscreen
Display Size 15.4 x 9.1cm 17.8cm (7\") Diagonal
Display Resolution 1024 x 600 pixels
Display Type WSVGA Display
Weight 1.3Kg
Water Rating IPX7
Mounting Options Bail Flush or Flat

Maps & Memory
Accepts Data Cards 2 microSD Cards (back of unit)
Waypoints 5 000
Track Points 50 000
tracks 50 Saved Tracks
Navigation Routes 100

Sensors
Built-in Receiver
Receiver 10 Hz High-sensitivity
NMEA 2000 Compatible
NMEA 0183 Compatible
GPS
GLONASS
GALILEO
Supports WAAS

Built-in Maps
Built-in Auto Guidance
BlueChart (Coastal)
LakeVu (Inland)
Tidetables

Optional Map Support
LakeVu G3
LakeVu G3 Ultra
Garmin Navionics+
Garmin Navionics Vision+
TOPO
Standard Mapping
Garmin Quickdraw Contours
Raster Chart Support

Chartplotter Features
Garmin Smartmode Compatible
(Customisable Monitor Presets)
AIS
DSC
Fusion-Link
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain App Compatible
GRID (Garmin Remote Input Device) Compatible
Wireless Remote Compatible
Sailing Features
Spoken Audo Alerts
OneHelm Support

Sonar Features & Specifications
Displays Sonar
Power Output 1kW
Traditional Sonar Built-in (Single channel CHIRP 70/83/200kHz L M H CHIRP)
ClearVu Built-in 260/455/800/1000/1200kHz
SideVu Built-in 260/455/800/1000/1200kHz
Panoptix Sonar
Livescope

Connections
NMEA 2000 Ports 1
NMEA 0183 Input Ports 1 Diffential
NMEA 0183 tx Ports 1
Video Input Ports 1 BNC
J1939 Ports 1
Garmin Marine Network Ports 1
12-Pin Transducer Ports 1
USB Ports
BNC External GPS Antenna Ports
Bluetooth Calling
ANT+ Connectivity
Garmin Wi-Fi Network

Electrical Features
Power Input 10 - 32 VDC
Typical Current Draw at 12V 1.18A
Max Current at 12V 2.96A
Max Power Use at 10V 35.9W
Get A Sharper View From A Connected Helm

With 60% more display pixels and nearly double the processing power of previous-generation 7-inch GPSMAP devices this crisp high-resolution chartplotter integrates seamlessly into your Garmin marine system.

Sail And Navigate With Ease

Faster Sharper Smarter - With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint it’s easy to retrofit this 7-inch plotter in a wider range of dash configurations.

Improved Display Optics - New higher-resolution 7-inch displays offer improved sunlight readability with 60% more pixels than previous-generation 7-inch GPSMAP devices.

Garmin SailAssist Sailing Features - View laylines race start line guidance enhanced wind rose heading and course-over-ground lines true wind data fields and tide/current/time slider wind angle set and drift wind speed and more.

Optional BlueChart G3 Vision Charts - These optional charts offer the best of Garmin and Navionics data Auto Guidance technology and other premium navigation features.

Connect To Everything On The Boat

Garmin Marine Network - Share information - such as maps user data radar and IP camera video among multiple compatible Garmin devices on the boat.

NMEA 2000 And NMEA 0183 Networks - Connect to compatible autopilots digital switching weather Fusion-Link audio system media VHF AIS and more from one screen.

ActiveCaptain App - Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature smart notifications software updates Garmin Helm digital switching Garmin Quickdraw Community data and more.

Integrated ANT Technology - Connect with some of your favourite devices such as quatix marine watches gWind Wireless 2 transducers transducers GNX Wind marine instruments and wireless remote controls.

J1939 Connectivity - Now you can connect the chartplotter to different kinds of engines including select Yamaha engines.

OneHelm Feature - This exclusive feature brings together all the operations and capabilities of select third-party devices such as EmpirBus digital switching on one screen.

See The World Below

Panoptix Sonar Support - Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) with FrontVü scanning sonar to help you see and avoid submerged obstacles in real time as you approach within a 91-metre range.

In The Box

  • GPSMAP 723xsv chartplotter
  • microSD card preinstalled
  • Power cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 metres)
  • 8-pin transducer to 12-pin sounder adapter cable
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
