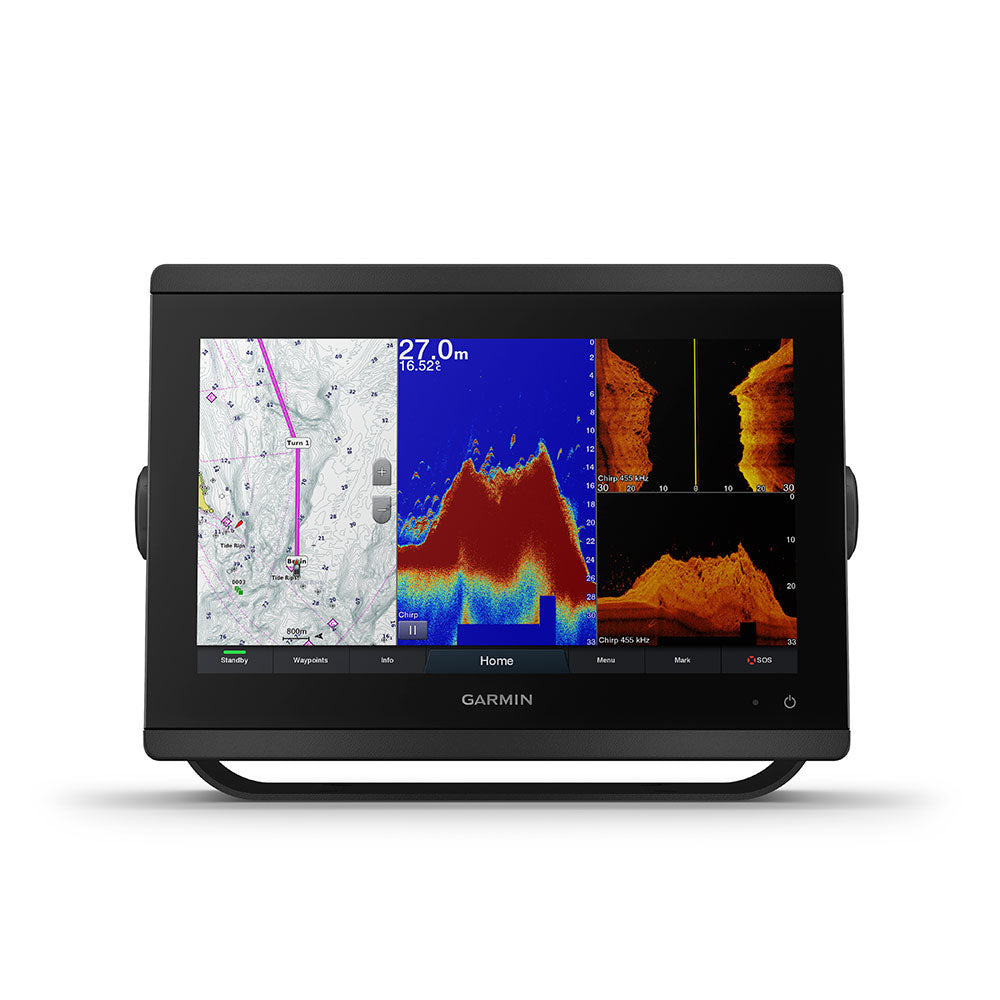

Garmin GPSMAP 8412xsv 12'' MFD Chartplotter / Sonar

Garmin GPSMAP 8412xsv 12'' MFD Chartplotter / Sonar


Regular price £3,989.99
Regular price Sale price £3,989.99
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Features a 12\" full HD IPS touchscreen display
  • Built-in support for the full suite of Garmin sonar capabilities
  • Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network
  • Includes ANT® technology and Wi-Fi® networking
  • Garmin SailAssist™ feature provides critical sailing data and displays prerace guidance for racers
  • SmartMode™ station controls enable quick one-touch access to the information you need

Technical Specifications

Dimensions 30.3 x 21.6 x 7.6 cm
Display Size 25.7 x 14.5 cm 29.5 cm (11.6\") Diagonal
Display Resolution FHD (1920 x 1200 pixels)
Display Type Touchscreen IPS Display with Anti-glare finish
Weight 2.7Kg
Water Rating IPX7
Mounting Options Bail Flat or Flush

Maps & Memory
Accepts Data Cards 2 SD Cards (On back of unit)
Waypoints 5 000
Track Points 50 000
tracks 50 Saved Tracks
Navigation Routes 100 (Up to 250 Waypoints per route)

Built-in Receiver
Receiver 10 Hz GPS/GLONASS/Galileo
NMEA 2000 Compatible
NMEA 0183 Compatible
Supports WAAS

Built-in Maps
Built-in Auto Guidance
BlueChart (Coastal>
LakeVu (Inland)

Optional Map Support
LakeVu G3
LakeVu G3 Ultra
Garmin Navionics+
Garmin Navionics Vision+
Standard Mapping
Garmin Quickdraw Contours
Raster Chart Support

Chartplotter Features
Garmin Smartmode Compatible (Custom Monitor Presets)
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain App Compatible
GRID (Garmin Remote Input Device) Compatible
Wireless Remote Compatible
Sailing Features
Spoken Audio Alerts
OneHelm Support

Sonar Features & Specifications
Displays Sonar
Power Output 1kW
Traditional Sonar Built-in (Dual channel CHIRP 70/83/200 kHz L/M/H CHIRP)
ClearVu Built-in 260/455/800/1000/1200 kHz
SideVu Built-in 260/455/800/1000/1200 kHz
Panoptix Sonar

NMEA 2000 Ports 1
NMEA 0183 Input Ports 1 Diffential
Video Input Ports 1 - BNC Composite
1 - HDMI (HDCP Compliant)
Video Output Ports 1 HDMI
J1939 Ports 1
Garmin Marine Network Ports 2
8 Pin Tranducer Ports
12 Pin Transducer Ports
USB Ports
BNC External GPS Antenna Port
Bluetooth Calling/td>
ANT+ Connectivity/td>
Garmin Wi-Fi Network/td>

Electrical Features
Power Input 10 - 32 VDC
Typical Current Draw at 12V 1.3A
Max Current at 12V 6A
Max Power Use at 10V 45W

Serious sport fishermen cruisers sailors and sail racers demand serious equipment. The easy-to-use easy-to-install GPSMAP® 8412xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 12\" full HD IPS touchscreen display for wider viewing angles superior clarity and sunlight readability even with polarised sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.

Complete sonar support
The GPSMAP® 8412xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar including dual-channel 1 kW traditional CHIRP CHIRP ClearVü and CHIRP SideVü scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix™ all-seeing sonar line (transducers sold separately).

Build your marine system
NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching lighting stabilisation and more — conveniently to your chartplotter screen.

Full connectivity
The GPSMAP® 8412xsv chartplotter has a premium-performance processor that enables fast map drawing superior networking video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™ smart notifications (1) Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition built-in ANT wireless technology connects you directly to our quatix® marine watch gWind™ Wireless 2 transducer and wireless remote controls.

SmartMode station controls
Networked sonar radar cameras media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode everything is designed to give you quick one-touch access to the information you need to ease high-stress situations such as docking.

Special sailing features
To help you make informed decisions the Garmin SailAssist feature provides critical data displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines enhanced wind rose heading and course-over-ground lines true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance including true and apparent wind angle set and drift true or apparent wind speed horizontal or vertical graphs and a data bar with customisable fields.

The ultimate connected boating app
Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to updating software and purchasing maps.

  1. When paired with a compatible smartphone
