Garmin

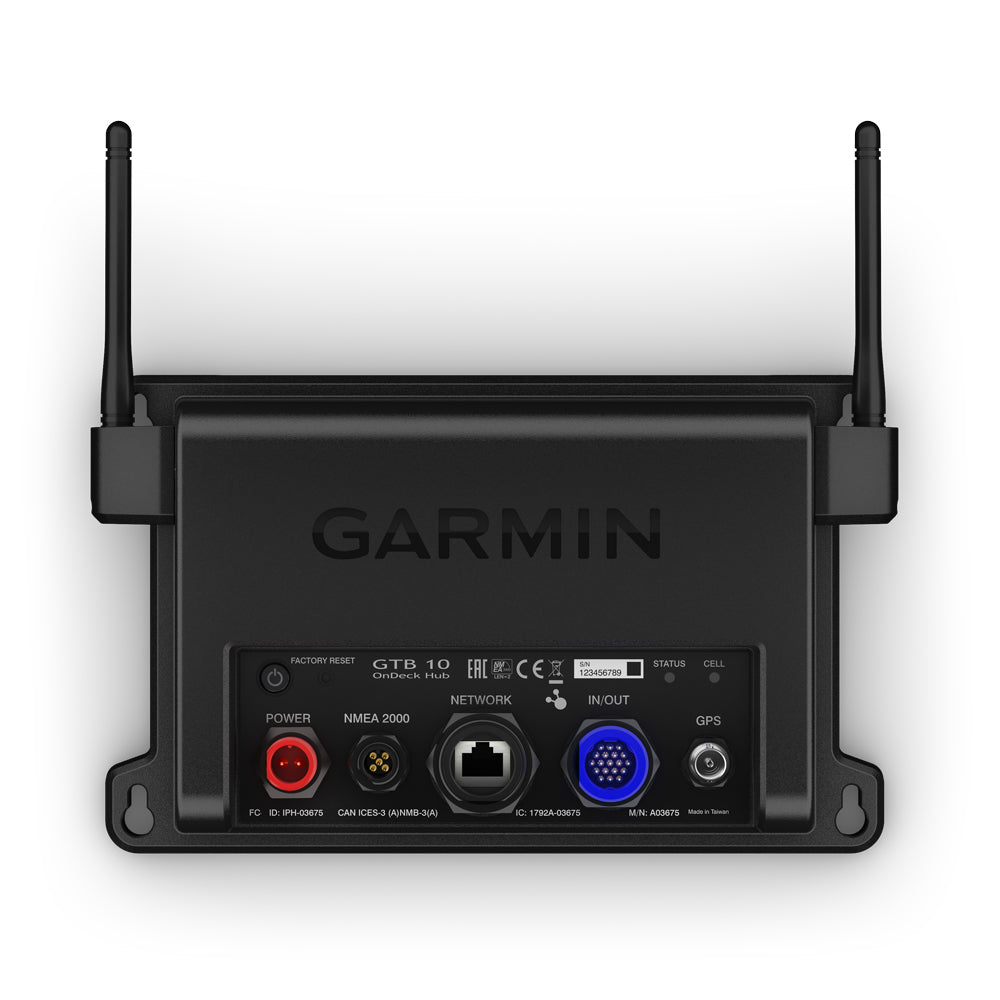

Garmin OnDeck Hub
Garmin OnDeck Hub
SKU:230-0100213400
Couldn't load pickup availability
- Track monitor and control up to 5 switches with the OnDeck system a fully integrated remote connectivity solution
- Door open? Bilge running? Peace of mind comes in the form of text alerts and updates
- New features same app. ActiveCaptain keeps connected to the boat
- An active subscription is required
Technical Specifications
X| General | |
|---|---|
| Dimensions without antennas | 23.1 x 4.9 x 14.2 cm |
| Dimensions with antennas pointing up | 23.1 x 13.2 x 14.2 |
| Weight | 0.64 Kg |
| Power Consumption | Max: 20W at 10Vdc |
| Input Voltage Range | 10 - 32 Vdc |
| Battery Life | Up to 48 Hours |
| Monitoring Frequency | 15 Minutes |
| Connectivity | |
|---|---|
| NMEA 2000 Compatible | ✓ |
| ActiveCaptain Compatible | ✓ |
| Cellular Connectivity | ✓ (3G/4G) |
| Wi-Fi | ✓ |
| Garmin Maring Network | ✓ |
| Sensors | |
|---|---|
| Bilge Pump | ✓ (2) |
| Security | ✓ |
| Battery Voltage | ✓ (2) |
| Temperature | ✓ |
| Shore Power | ✓ |
| GPS Location | ✓ |
| Distance Log | ✓ |
| NMEA Sensors | |
|---|---|
| Fluid Level | ✓ |
| Temperature | ✓ |
| Water Depth | ✓ |
| Position | ✓ |
| COG (Course Over Ground) | ✓ |
| SOG (Speed Over Ground) | ✓ |
| Vessel Speed | ✓ |
| Wind Data | ✓ |
| Fuel Flow Rate | ✓ |
| Engine Hours | ✓ |
| Engine Warning Indicators | ✓ |
| Switch Controls | |
|---|---|
| Relay Switch | ✓ (5) |
| Alarms | |
|---|---|
| Temperature | ✓ |
| Geofence | ✓ |
| Offline | ✓ |
| Voltage | ✓ |
| Shore Power | ✓ |
| Security Sensor | ✓ |
| Depth | ✓ |
Be There From Virtually Anywhere
Track - Be the first to know if a security sensor has been triggered or if the boat has been moved. The internal GPS sensor updates every 15 or 30 minutes depending on power status and will send text alerts if the boat leaves the geo-fenced area.
Monitor - Get updates on the boat’s battery status bilge activity shore power temperature changes and more. Set up alarm notifications in the ActiveCaptain® app.
Control - Get out on the water faster turn on up to 5 selected systems including battery chargers ice makers and more from afar via relay switches.
ActiveCaptain App - Download the ActiveCaptain app to a compatible smartphone to manage the vessel. Set up alarm notifications take control of the boat and so much more.
Store Data - Securely collect vessel data with the GTB 10 OnDeck Hub and store it in the cloud for up to 30 days.
Always-On Connection - The GTB 10 hub uses 3G/4G coverage.
Backup Battery - A 48-hour internal backup battery allows access to OnDeck after the boat battery is depleted or the power is disconnected.
Full Integration - The OnDeck system is a seamless addition to any current marine electronics (MFD via Garmin Marine Network engines NMEA 2000® sensors).
Subscription - To stay in touch with the vessel an active subscription plan is required. Choose between an annual plan or pay month-to-month.
| OnDeck Annual Plan | OnDeck Monthly Plan | |
|---|---|---|
| Monthly Plan Charges | £12.99 | £19.99 |
| Activation | Free for first 3 months with activation | |
| Contract | Annual contract billed monthly | No long-term commitment cancel anytime |
| Billing | After year contract expires billing will continue month to month | Can start and stop service as desired |
| Cancellation |
First 3 Months: No charge to consumer if subscription cancelled during three-month promotion period Remainder of 1st year contract: Cancellation during contract period after the three month promotion period will bill remainder of the year. |
In The Box
- OnDeck Hub
- OnDeck security sensor
- OnDeck temperature sensor
- OnDeck shore power sensor
- OnDeck relay switch 12 Vdc (1x)
- Power cable
- In/out data cable (19-pin) sensor/relay output
- Garmin Marine Network cable
- NMEA 2000 drop cable
- NMEA 2000 T-connector
