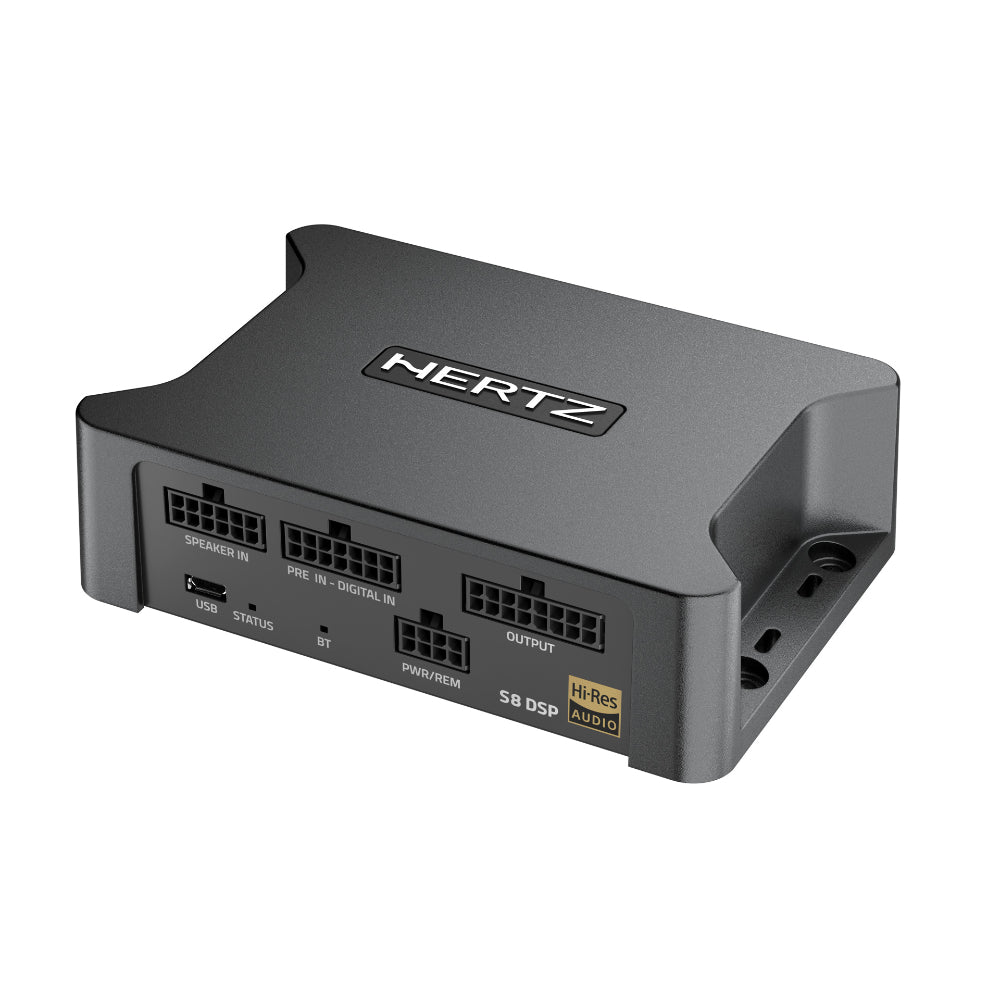

Hertz S8 DSP Hi-Res Digital Signal Processor
Hertz S8 DSP Hi-Res Digital Signal Processor
SKU:320-S8DSP
Couldn't load pickup availability
- Hi-Res audio (96 kHz/24-bit native resolution) for unparalled audio quality
- Built-in USS technology (Universal Speakers Simulator) S8 DSP can also be correctly connected to head units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs
- Upload a setup file via BT through the Bluetooth 5.0* APP when in “Configurator” or “DRC” mode
- Configurable via PC Mac Android or iOS devices
- Compact size featuring all connections on one side
- S8 DSP features a sturdy enclosure with an anti-corrosion-treated PCB
Technical Specifications
X| General | |
|---|---|
| Nominal Power supply voltage / fuse: | 7 - 20 VDC / 1A |
| Pulse operating voltage: | 5 - 24 VDC |
| Idling current: | 0.34 A |
| OFF current (ART= OFF): | <80 uA |
| OFF current (ART= ON): | <80 uA |
| Remote IN | 6 - 20 VDC (10 mA) |
| Remote OUT | 4 - 20 VDC (150 mA) |
| ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable): | 1.5 - 7 VDC |
| Max size W x H x D (mm/inch) | 130 x 33.8 x 88 3 / 5.11 x 1.44 x 3.47 |
| Weight (kg/lbs) | 0.66 / 1.45 |
| Input Stage | |
|---|---|
| Analog low level Inputs | 6 ch. (Differential input) (Molex microfit to RCAs) |
| Analog high level Inputs | 6 ch. (Differential input) (Molex microfit to tripped ends) + USS (Universal Speakers Simulator) |
| Digital inputs | Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA) |
| Input sensitivity (low level) | 0.8V – 6V RMS |
| Input sensitivity (high level) | 2.5V – 21V RMS |
| Analog inputs management | Audio input routing matrix type |
| Analog inputs eq | 7 bands paragraphic for each input channel |
| ART | Automatic Remote Turn-On/Off with Speaker-In |
| Output Stage | |
|---|---|
| Analog outputs (rca) | 8 channels |
| Max output level (rms) @ 0.05% THD | 4V |
| 95dBA Analog outputs management | The DSP controls each output channel: gain crossover EQ delay polarity |
| Bandwidth | 10Hz – 40KHz (+/-3db) |
| Signal to noise ratio (A weighted) | 105dBA (Analog Input) 112dBA (Digital Input) |
| THD+N (@ 1Vrms out @ 1Khz) | <0.005% |
| Crosstalk (channel separation) @ 1KHz | >95dBA |
| Digital Signal Processor | |
|---|---|
| Sample rate | 96KHz |
| Bit depth | 24 |
| Output equalizer | 15 bands per channel w/ adjustable Q and Frequency |
| Equalizer resolution | 1/10th dB per step +12dB / -12dB |
| Time alignment (distance) | 0 - 468.4 cm / 0 - 184.4 inches |
| Time alignment (time) | 0 - 13.5ms |
| Time alignment (step) | 0.08 ms; 2.8 cm / 1.1 inch |
| Time alignment (fine set) | 0.02 ms; 0.7 cm / 0.27 inch |
| Crossovers | AP/HP/LP/BP all channels |
| Crossover type | Butterworth Linkwitz-Riley Bessel (All Channels) |
| Crossover slope | From 6dB/oct. until 30dB/oct. (6dB step) |
| Crossover steps | 120 steps 20Hz-20KHz |
| Mute function | I can mute every channel separately or all together. |
| Presets | 4 presets |
| Presets selection | 2 specific wires to control the 4 presets selection by extarnal switches. |
| Input selection by wire | One specific wire to select the desired input between Analog or Digital. |
| Audio signal compressor on output stage | Yes (enable/disable) |
| DSP chipset | Analog Device: ADAU1451 |
| DSP management by bt app (iOS/ Android) |
|
| Setup file sharing via BT | Upload a setup file via BT through the BT APP when in “Configurator” or “DRC” mode. |
| DSP management by pc / mac / ios / android | Microsoft Windows (32/64 bit): Windows 10 (USB and BT BLE) Windows 11 (USB and BT BLE) Mac Os: 10.13 Hight Sierra or later (USB and BT BLE) |
The ultra-compact S8 DSP is the perfect solution for integrating any OEM source into any audio upgrade project for cars motorcycles and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials.
S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society) an acknowledgment that certifies the extreme level of audio performance achieved.
The powerful 32-bit DSP manages 6 high/low-level analog input channels one digital coaxial input and 8 output channels offering maximum freedom of configuration to the specialist. The SPDIF coaxial input is ideal for digital connection with a Hi-Res player a solution that allows for maximum listening quality. For each of the eight output channels we have a level control the 15-pole parametric equalizer time delays and crossover filter available. The 7-band parametric equalizer of the input signal allows obtaining a flat response from OEM sources which often have an exaggerated emphasis on the low frequency.
Technologies
Hi-Res Audio - Hi-Res audio (96 kHz/24-bit native resolution) for unparalled audio quality.
USS (Universal Speakers Simulator) - Thanks to the built-in USS technology S8 DSP can also be correctly connected to head units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.
Bluetooth 5.0 - Upload a setup file via BT through the Bluetooth 5.0* APP when in “Configurator” or “DRC” mode. *Music streaming not supported.
App Control - Configurable with a PC a Mac an Android device or an iOS device. iOS/ Android control APPs (Bluetooth 5.0) DRC control over app from iOS/Android devices.
Ultra Compact - Compact size featuring all connections on one side to be installed anywhere.
Conformal Coating PCB - S8 DSP features a sturdy enclosure with an anti-corrosion-treated PCB to ensure years of listening pleasure in open nature.
