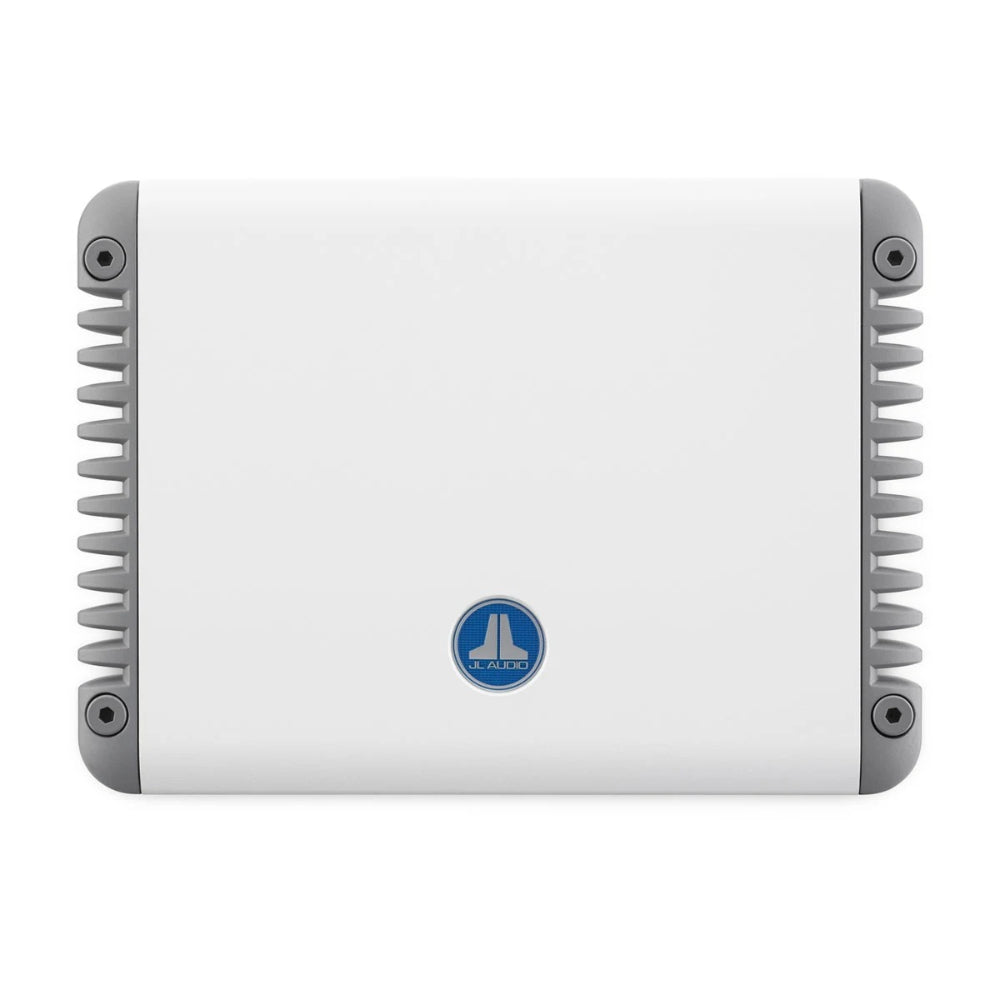

JL Audio MHD Marine Amplifier - 5 Channel - 24V

• High-Fidelity Class-D design delivers superb sonics
• Intelligently optimised for all the power all the time
• Full suite of studio-grade signal processing on board
• Unique design adjusts operation to avoid thermal events
• Exceeds international standards for salt fog and UV exposure

Single Cycle Control - Groundbreaking technology applies output correction more than 400 000 times per second to deliver exceptional audio quality with reduced current draw and heat.

R.I.P.S. Technology - Regulated Intelligent Power Supply is a tightly controlled design that maintains full power output from 1.5 to 4 ohms per channel and at any supply voltage from 11 to 14.5 volts.

Studio-Grade Signal Processing - Selectable 12 dB/octave (Butterworth) or steep 24 dB/octave (Linkwitz-Riley) filters with calibrated potentiometer to best integrate with subwoofers and component systems.

Differential-Balanced Inputs - A versatile design accepts speaker level signals without a line-output converter; it also delivers outstanding noise rejection while preventing alternator whine and other noises.

Advanced Rollback Protection - Innovative circuit design ensures that the amplifier will never shut down as a result of thermal overload and keeps the music playing even under the most demanding conditions.

Built For The Elements - An all-aluminum powder-coated housing with marine-grade hardware inhibits corrosion and a watertight security cover protects all controls from the harshest of seasons.

Functional High-Fidelity

Powerfully Neat - All MHD models share the same compact dimensions making them far easier to place.

Realsink Chassis - The heat sink design requires no fans and permits stacking without losing cooling ability.

Designed To Fit - Removable power and speaker plugs aid installations in tight spaces

In The Box

• MHD amplifier
• Power input plug
• Speaker connection plug(s)
• Four mounting feet
• 2.5 mm Allen wrench
• 4 mm Allen wrench
• Four machine screws
• JL Audio badge
