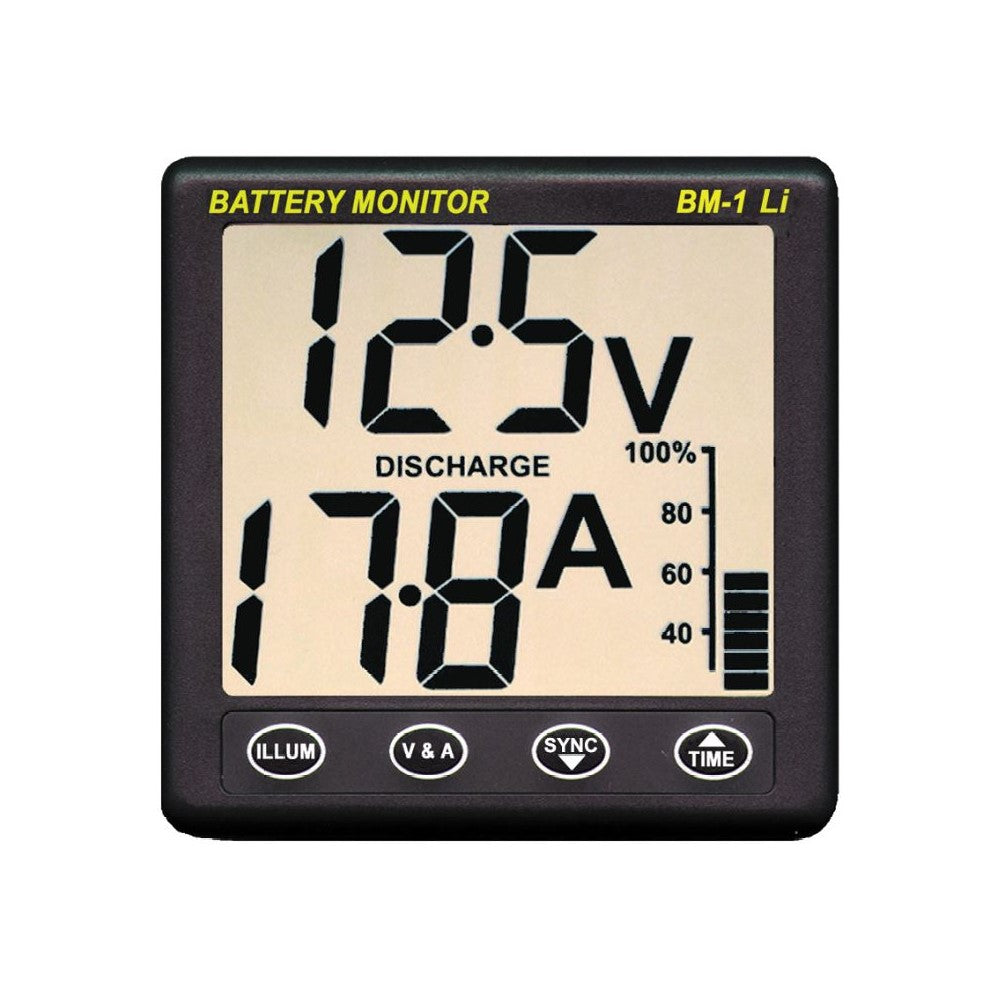

Nasa Clipper BM-1 Lithium (LifePO4) Battery Monitor

• Voltage Range: 8 – 16 Volts DC
• Supply current: 1.5 milliamps
• Battery capacities: 20 – 600 AMP Hour
• Load current: 100 AMPS Maximum
• Charge current: 100 AMPS Maximum
• Shunt Standard: 50 millivolt @ 100 AMP

The BM-1 Li battery monitor is specifically designed for 12-Volt lithium iron phosphate (LiFePO4) battery installation. Capable of continuous charge or discharge currents of up to 100 Amps BM-1 Li displays the service battery Voltage the charge or discharge current the state of charge and the time to achieve full charge during charging or the time remaining during discharge.

This information leads to more efficient use of the battery which will enhance battery life and reduce the risk of failure.

In The Box

• BM1-Li Display Unit
• 100 Amp Shunt Link
• 5M Battery Fused Battery Cable
• Clipper Display Cover
