NASA Clipper Tactical Wind System

NASA Clipper Tactical Wind System


Regular price £314.26
Regular price Sale price £314.26
Sale Sold out
Tax included. Shipping calculated at checkout.

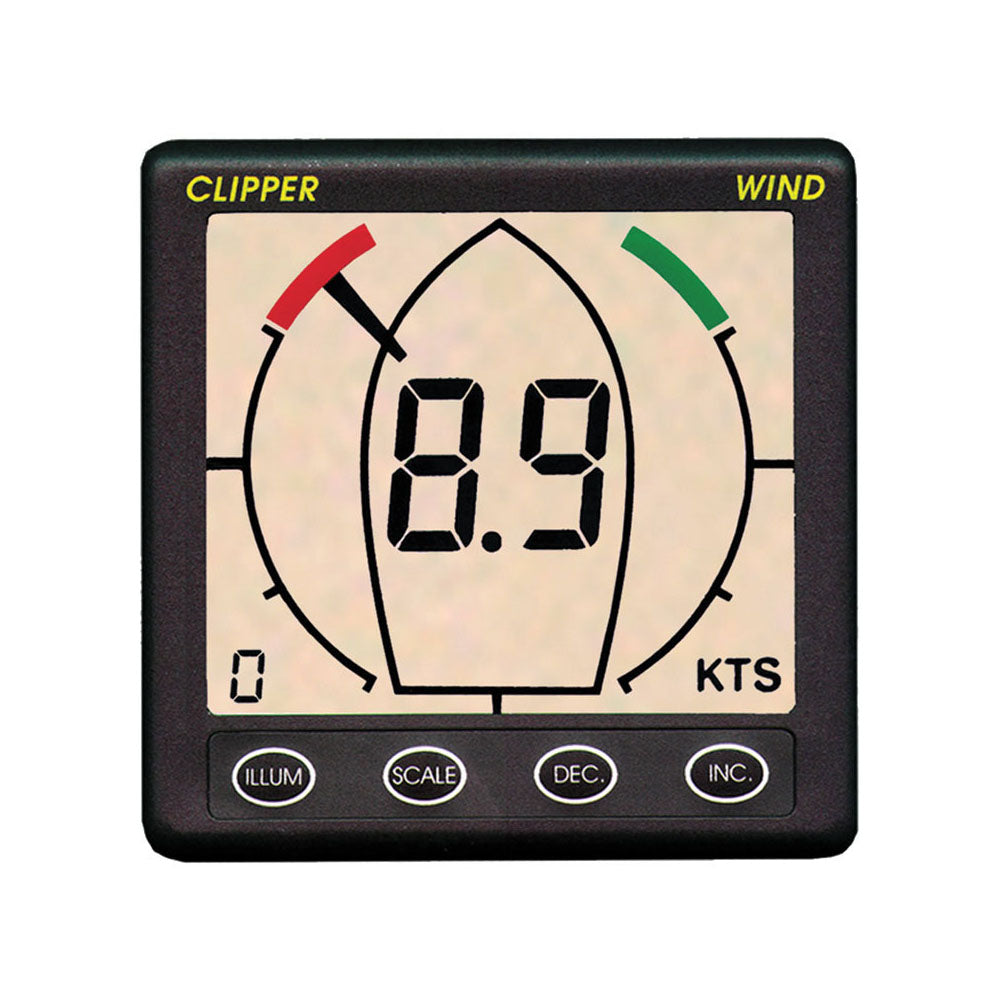

The output data is in the NMEA 0183 format and can be used to drive any compatible display that utilises the MWV sentence. True wind display unit - The Clipper True Wind Display shows apparent wind speed and direction and when connected to a log or GPS it can also show true wind speed and direction.

Technical Data.

Mast transmitter supplied with 20m cable.

NMEA 0183 4800 Baud data sentence MWV - update rate = 10 per second.

Wind speed 0 to 99.9 Kts.

Wind direction 0 to 360 degrees.

Supply voltage nominal 12 Volts.

Wind sensor supply current 9mA<.

Display Unit.

Supply voltage nominal 12 Volts.

Supply current 10mA + (10mA for back light illumination Max).

NMEA input sentence MWV.

Back light - 9 levels.

Pointer style - 2Display wind speed - 0 to 99 Kts.

Display Wind angle - 0 to 360 degrees represented by 60 segments.

Display case size 110 x 110mm.

NMEA boat speed input either VHW from log or RMC from GPS for True wind speed and direction.
