NASA Clipper Wireless Wind with MHU and Data Box

NASA Clipper Wireless Wind with MHU and Data Box

SKU:523-CLIP-WWIND

Regular price £339.49
Regular price Sale price £339.49
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour

Features

  • Wireless wind speed and direction data to any compatible NMEA display.
  • Easy installation with mast in place – no wires to run down.
  • Simple masthead alignment through base unit.
  • Light mast unit weight - 190 grams.

TECHNICAL SPECIFICATION.

  • Sleep time > 15 000 Hours.
  • Operating time > 2 000 Hours.
  • Charging time < 150 Hours of bright daylight.
  • Fully charged with no further daylight.

MASTHEAD/INTERFACE UNIT SPECIFICATIONS.

  • Wireless masthead transmitter.
  • NMEA 0183 4800 Baud.
  • NMEA data sentence MWV.

INTERFACE UNIT.

  • Supply voltage Nominal 12v DC.
  • Supply current 17mA.
  • Wind speed and direction NMEA data sentence MWV to any compatible NMEA device.
  • DISPLAY UNIT SPECIFICATIONS.
  • Supply voltage Nominal 12v DC.
  • NMEA 0183 input sentence MWV.
  • 9 levels of display back lighting.
  • Display case size 110 x 110mm.

The Clipper wireless wind is supplied with a wireless masthead transmitter a base unit and a Clipper Wind display unit. The wireless masthead transmitter is powered by an internal battery which is charged from ambient light using a small solar panel. A few dull days will not affect performance. When fully charged it is capable of two thousand hours of full operation in total darkness. The masthead transmitter sends data wirelessly to the base unit which is powered by the vessel\'s 12 Volt supply the base unit receives wind speed and direction data from the masthead transmitter and sends it to the Clipper Wind display or any other compatible NMEA display unit.

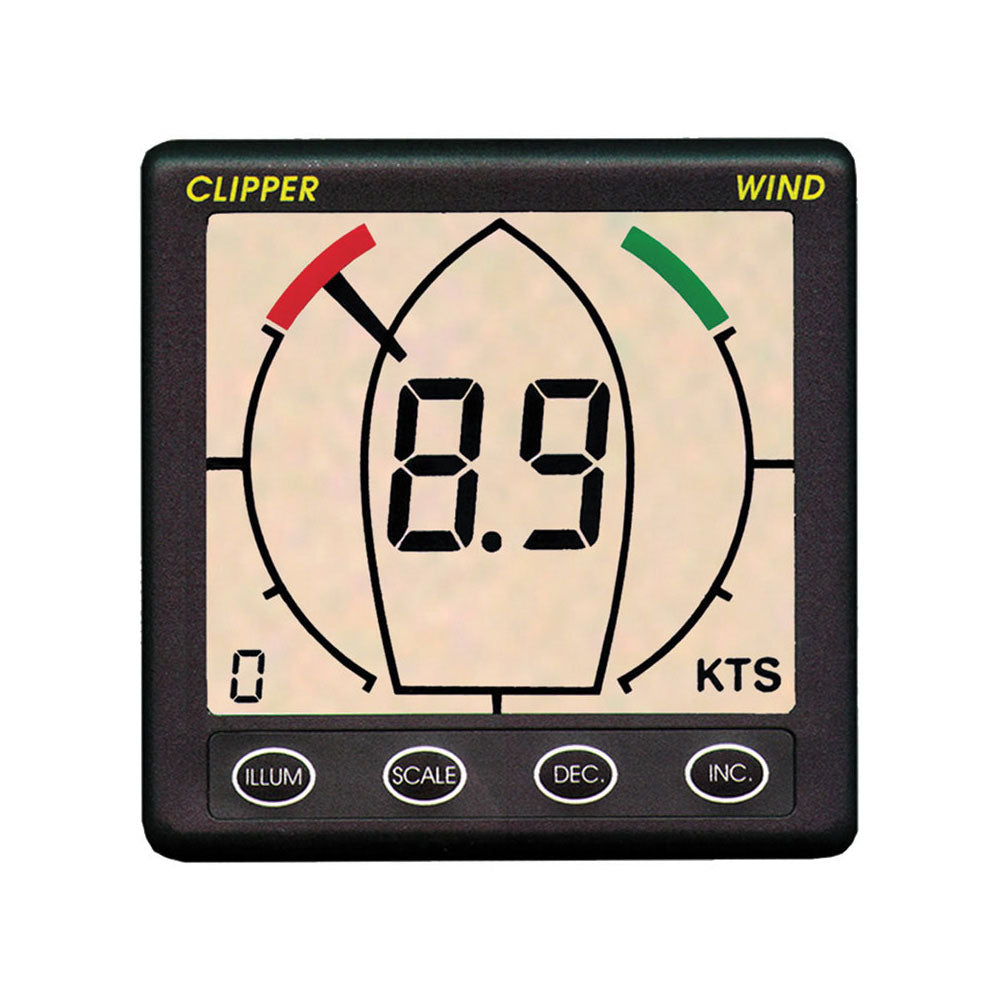

The Clipper Wind display is in the industry standard 110mm square case. Exceptionally large and clear display with 60 segments for full 360 degree direction indication.
