Nasa NMEA 0183 to NMEA 2000 Speed Log Converter

• NMEA 2000 compliant output
• PGN 128259 + 128275
• Current consumption 30mA
• Connects to any NMEA 0183 VHW + VLW output (inc NASA Marine NMEA ouput speed logs)
• LED for data transmission

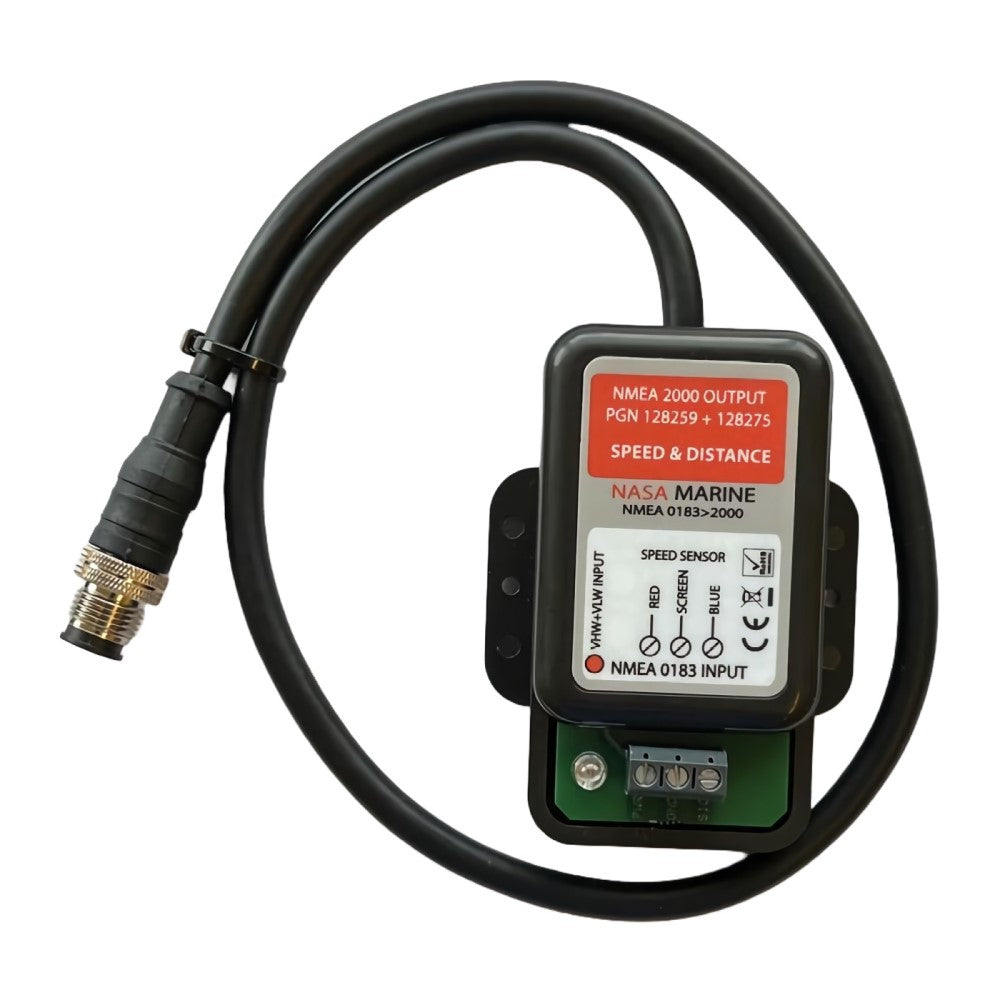

The product consists of a translator box which inputs the NMEA 0183 speed log data sentences VHW + VLW. It translates the 0183 data into NMEA 2000 compliant speed and distance data for connection via a ‘micro-c’ connector directly into an existing NMEA 2000 network.
