Oceanic Systems Diesel D/Filler Gauge 38mm
Oceanic Systems Diesel D/Filler Gauge 38mm
SKU:560-3210-D38

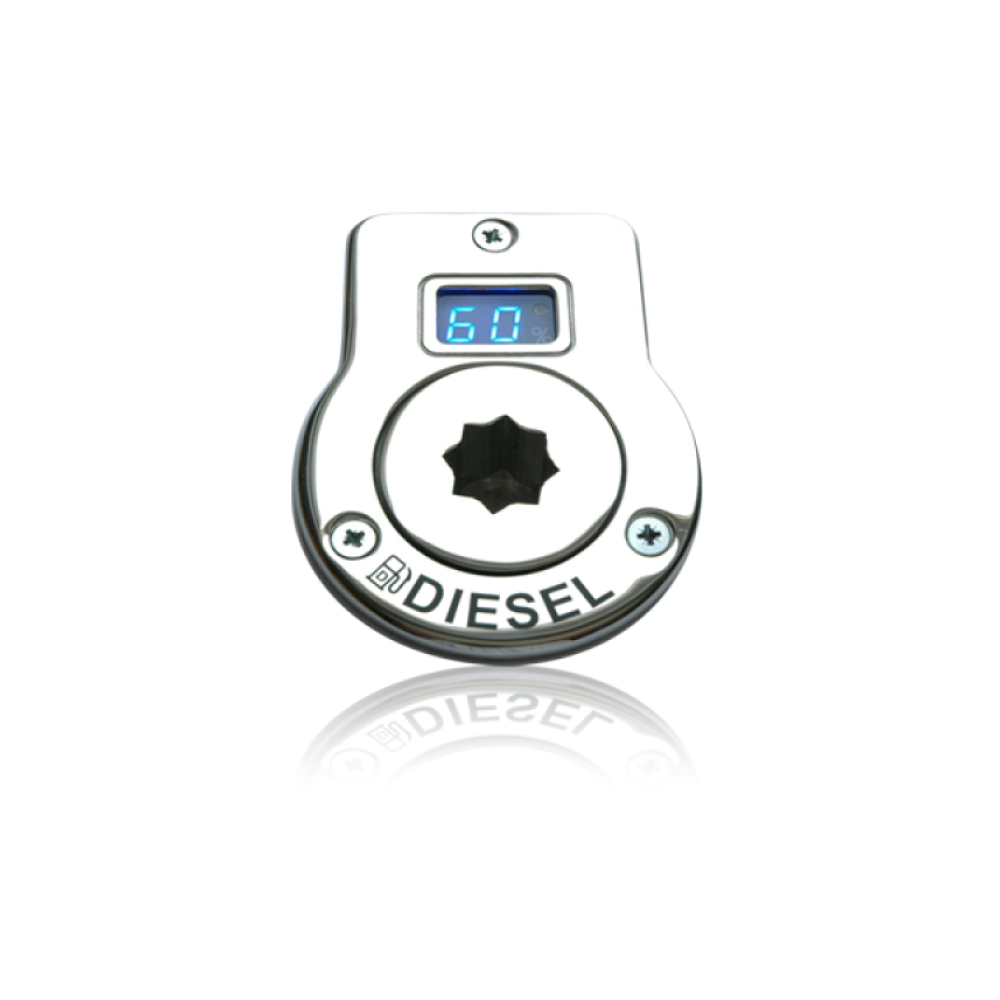

The 3210 NMEA2000® Deck Filler Gauge displays the tank level right at the tank’s deck filler.
This enables the user to see the exact tank level at the point of filling. This allows the tanks to be filled to the top without the risk of spills or wastage.
The tank level is displayed on a blue LED display set into the deck filler surround. This provides a clear indication of the level of the liquid in the tank at all times. The LED varies in brightness to compensate for ambient light levels brighter in sunlight and dimmer at night.
The deck filler cap has a standard octagonal opening key with a heavy duty O ring seal to keep sea water out of the tank. The deck filler and it’s cap are produced in mirror polished stainless steel to provide a rugged and attractive finish.
It is constructed to the IEC60945 Maritime Navigational and Radiocommunications Equipment Standard to ensure high reliability and trouble free operation for many years.
It is NMEA2000® Certified and attaches to the network using a single plug. No other wiring is needed.
- Displays Tank Level at the Deck Filler and at the existing instruments
- Prevents fuel spills during refuelling
- Maximise Range from Full Tanks
- Available for “FUEL” “DIESEL” “GAS” or “WATER”
- Fits 50mm/2” pipes
- LED Level Display Blue
- Robust Stainless Steel with Laser Etched designator
- Easy to Install
- Single Plug to NMEA2000® Bus
