Raymarine

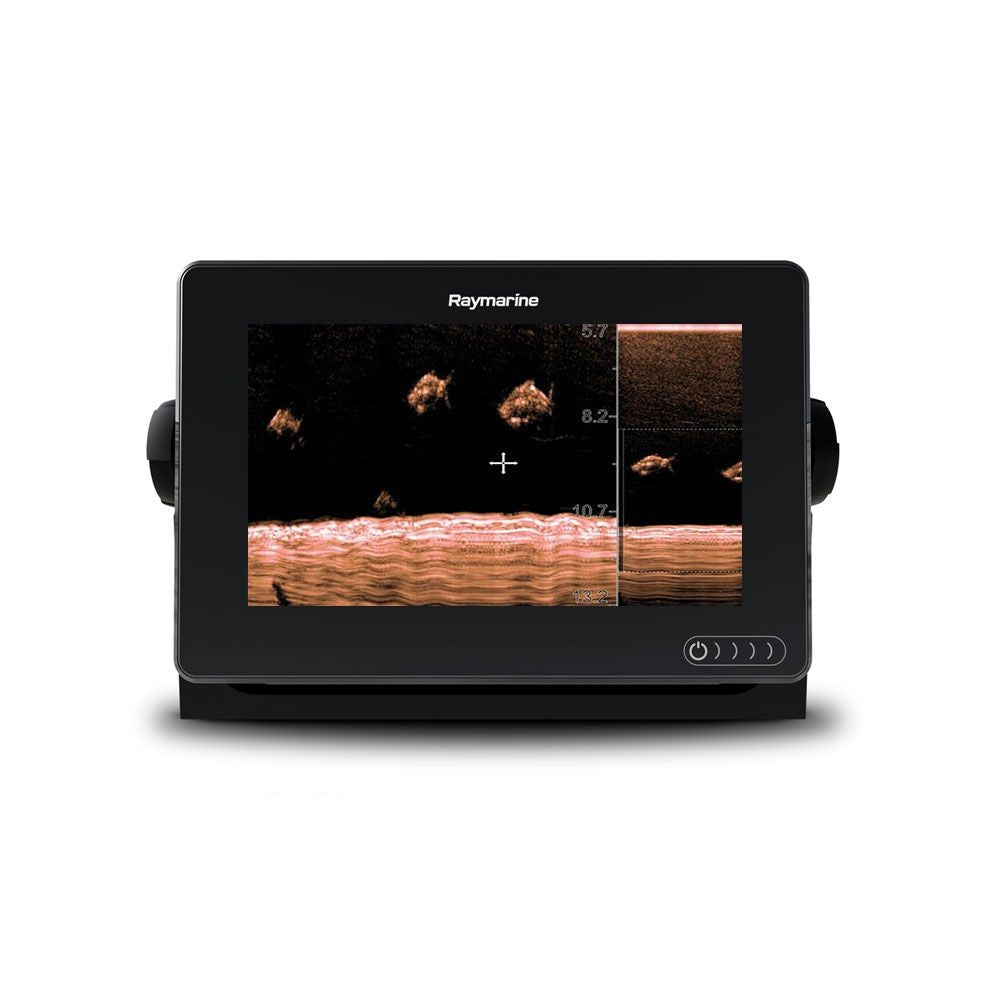

Raymarine AXIOM 7DV - Display Only

Raymarine AXIOM 7DV - Display Only

SKU:705-E70364

Regular price £795.00
Regular price £795.00 Sale price £795.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • Display Size: 7.0\" Optically Bonded LCD
  • Display Resolution: 800 x 480 WVGA
  • Display Type: Multitouch
  • Brightness: 1 200 nits
  • Viewing Angle Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right)
  • Dimensions: 210 x 142 x 77mm (7.92\" x 5.24\" x 3.00\")
  • Weight: 1.52kg (3.35lbs)
  • Mounting: Top Flush Front Bracket
  • Waterproof Rating: IPX7
  • Operating Temperature: -25deg C to +55deg C (-13deg F to 131deg F)
  • Storage Temp: -30deg C to +70deg C (- 22deg F to 158deg F)
  • Voltage: 12V DC (8 V to 16 VDC)
  • Power Consumption (Max @ 12V DC): 10.02 Watts

A powerful multifunction navigation system from Raymarine with blazing fast quad-core performance and power; rugged all-glass displays optimized for flush or surface mounting; and a sleek buttonless design with swipe-to-power control. Featuring the new LightHouse OS which is fast fluid and easy to learn with an uncluttered interface - easily personalized for your style of navigating.

AXIOM is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories including Quantum radar CHIRP Sonar FLIR thermal cameras audio integration instruments cameras and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

New Lighthouse OS
Fast fluid and easy to learn. An uncluttered interface is easily personalized for your style of navigating.

Rugged all-glass display
Optimized for flush or surface mounting. Sleek buttonless design with swipe-to-power control.

Chartplotter
Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital Blue Latitude and more.

Down Vision Sonar
Down Vision model features CHIRP DownVision Sonar technology. DownVision™ sonar uses CHIRP technology to transmit across a wide spectrum of sonar frequencies simultaneously– the result is much higher-resolution life-like sonar images.

View full details
