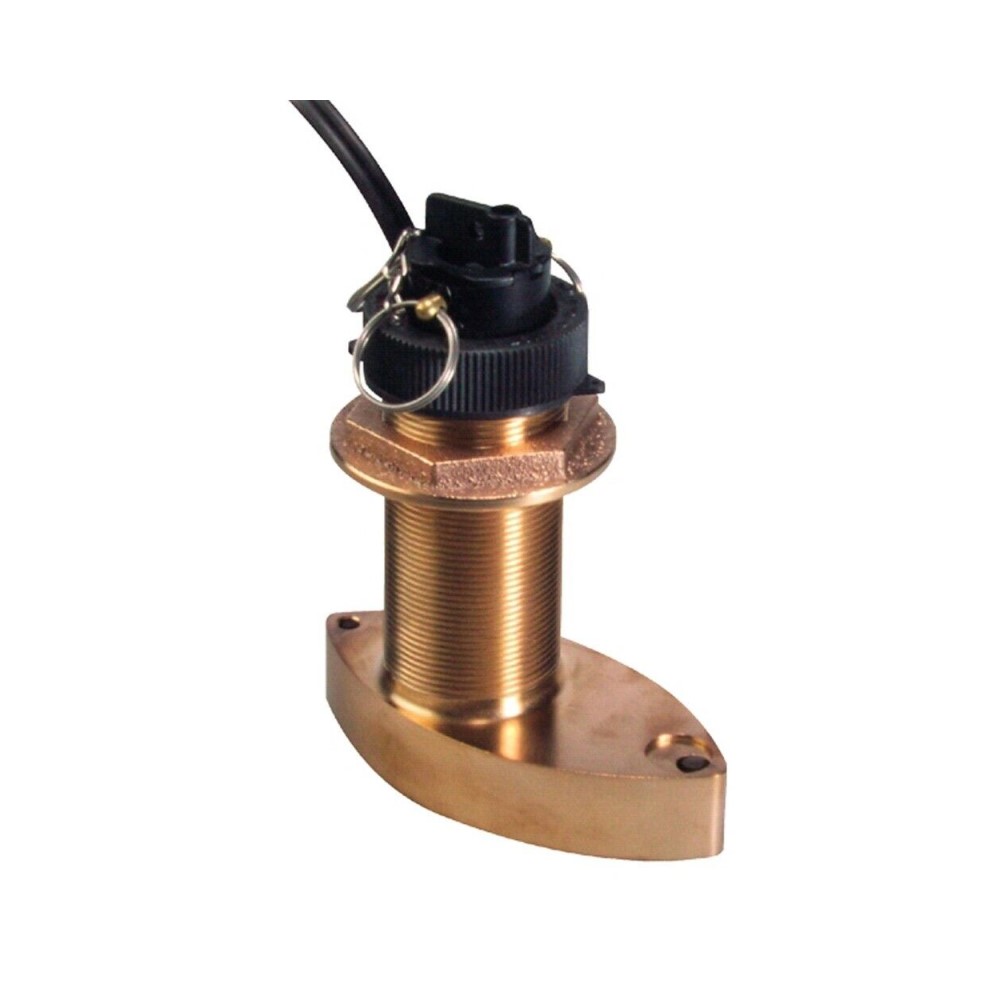

Raymarine B744V Bronze DST Thru Hull Transducer (No Fairing)

• Depth speed and temperature in one housing
• 600 W
• Dual-frequency element:
• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1 200\')
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700\')
• Self-closing water valve reduces water flow into the hull when paddlewheel insert is removed
• Fins on sides of paddlewheel cavity improve accuracy in cross-flow conditions

The B744V is a TRIDUCER Multisensor featuring depth speed and temperature in a single housing. The 50/200 kHz dual-frequency single ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz.

Specifications

• Weight: 2.5 kg (5.5 lb.)
• Recommended Boat Length: Up to 9 m (30\')
• Hull Material: Fiberglass or wood
• Acoustic Window: Urethane
• Hole Diameter: 51 mm or 2\"
• Speed Range: 1 to 45 knots (1 to 52 MPH)
