Raymarine

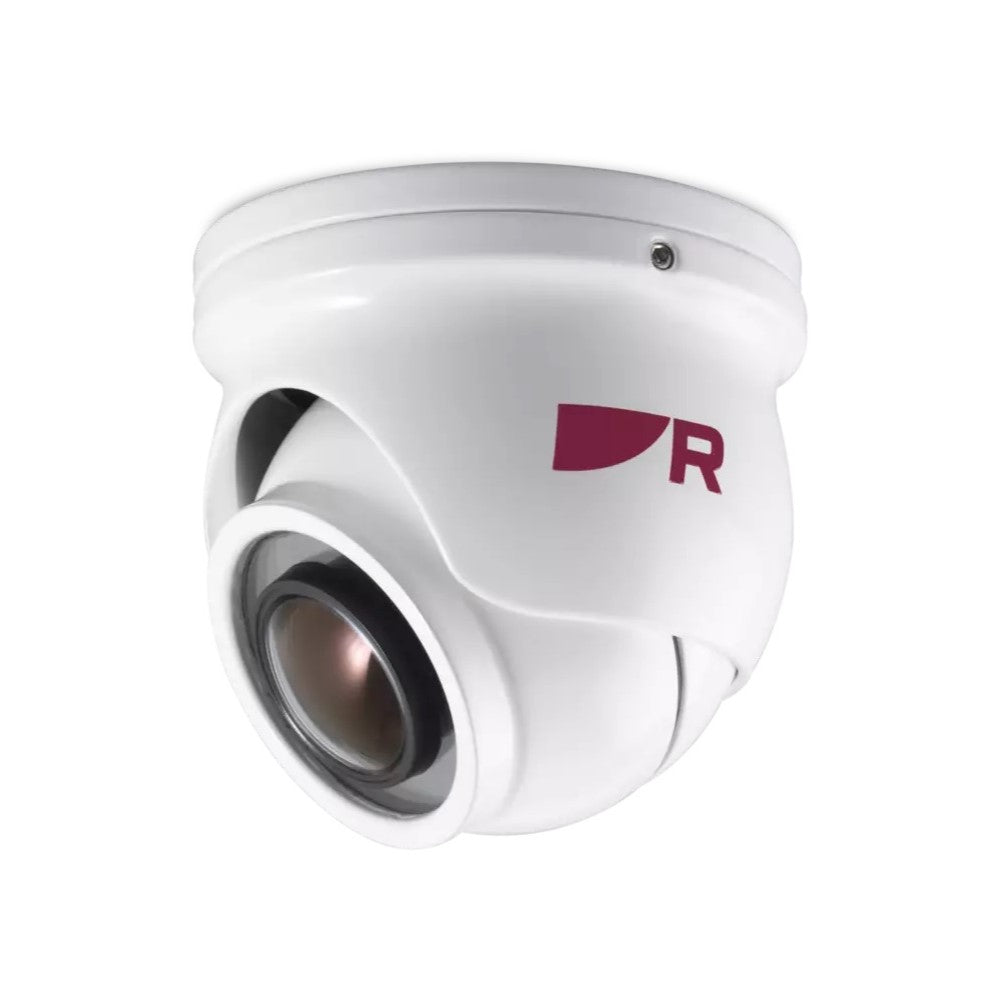

Raymarine CAM300 Mini Day / Night IP Camera
Raymarine CAM300 Mini Day / Night IP Camera
SKU:705-E70660
Regular price
£505.75
Regular price
£455.56
Sale price
£505.75
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Rugged IP66 enclosure
- Low light visibility up to 33\'
- Compact size at just over 2 inches (58mm) tall
- HD Imagery
- Flexible power options
Technical Specifications
X| Power | |
|---|---|
| Nominal Supply Voltage | 12V DC |
| Operating Voltage Range | 10.8V to 15.6V DC |
| Power Consumption | 1W Nominal @ 12V DC / 1.8W Maximum (LEDs On) |
| Power Connection | DC Power cable or POE (Power over Ethernet) |
| Enviromental Specification | |
|---|---|
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Waterproof Rating | IP66 |
| Physical Specification | |
|---|---|
| Dimensions | Base Diameter: 59.5mm (2.34\") Height: 52.9mm (2.08\") |
| Weight | 0.42Kg (0.926lbs) |
| Video | |
|---|---|
| Video Processing | H.264 Codec / Dual Stream |
| Illumination | 6 x 850nm Infrared - 10 meter range |
| Frame Rate | 25 fps |
| Resolution | 2304 x 1296 (3MP) Max |
| ONVIF Conformance | Profile S |
| Sensor / DSP | 1/4\" CMOS Sensor |
| Field of View | 1.8mm Standard (160° HFOV x 130° VFOV) |
| Compatibility | |
|---|---|
| Axiom Display Compatibility | Units running LightHouse 4.2 or later |
The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots check in on the crew or watch and record all fishing action from the helm. Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets waypoints and chart objects on the Axiom video display.
In The Box
- CAM300 - includes an approximate 670 mm (2.2\') fitted cable featuring an RJ45 (male) and power connector
- Mounting screws (3 x)
- Documentation
- Hex wrench (Allen key)
- Waterproof gasket
