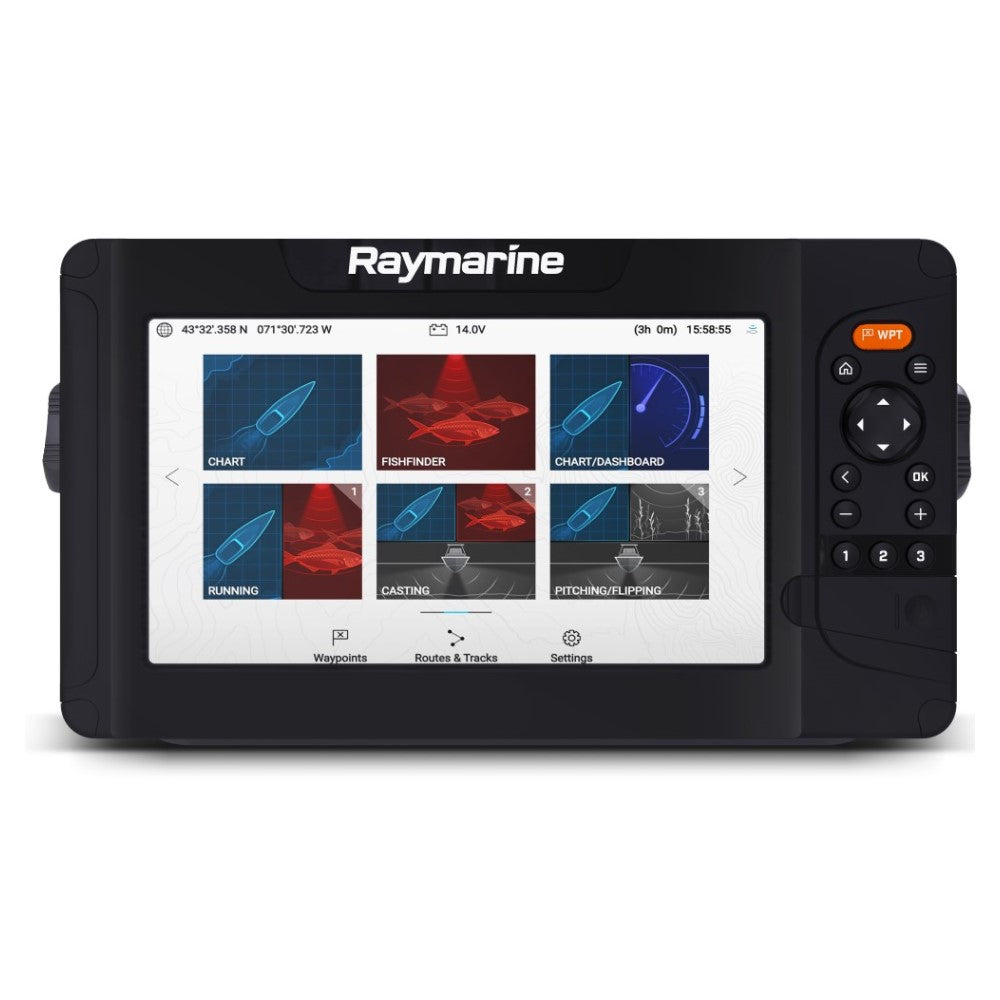

Raymarine Element 9S - Display Only

Raymarine Element 9S - Display Only


Regular price £645.00
Regular price Sale price £645.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Display Size: 9.0\" Optically Bonded LCD
  • Display Resolution: 800 x 480 WVGA
  • Three user-programmable quick keys provide access to favorite pages with one button push
  • Live menus allows customisation of charts while seeing the navigation display change in real time

Technical Specifications

Operating Voltage Range 8 - 16V DC (Protected up to 32V DC)
Power Consumption @ 12V DC 20W
Nominal Supply Voltage 12V DC
Fuse Requirements Inline fues: 5A Thermal Breaker: 3A
LEN (NMEA 2000 Load Equivalency Number) 1 (Based on 9V DC nominal voltage

Operating Temperature Range -25°C - 55°C (-13°F - 131°F)
Storage Temperature Range -30°C - 70°C (-22°F - 158°F)
Humidity up to 93% @ 40°C (104°F)
Waterproof Rating IPX6 IPX7

Dimensions (Trunion Mounted 171 x 308.4 x 149.4mm (6.73\" x 12.14\" x 5.88\")
Dimensions (Surface Mounted) 161 x 286.5 x 149.4mm (6.34\" x 11.28\" x 5.88\")
Weight (Display only) 1.3Kg (2.86lbs)

Size (diagonal) 9\"
Resolution 800 x 480 (WVGA)
Aspect Ratio 5:3
View Angle (T/B/L/R) 50°/70°/70°/70°
Display Type TN
Colour Depth 24-bit
Maximum Illumination 1 500nits / 1 500 cd/m2

Data Connections
SeaTalkng / NMEA 2000 1 x DeviceNet femal connector
(Built into power cable)
2.4 GHz Wi-Fi 802.11/b/g/n
Transducer 1 x 15-pin connector

GPS Receiver
Position Accuracy Without SBAS: ≤ 15 metres 95% of the time
With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum WGS-84 (alternatives can be selected on the MFD)
Channels Multiple - ability to simultaneously track up to 28 satellites
Antenna Internal - Ceramic chip mounted near top of unit
GNSS compatibility GPS GLONASS Beidou
Signal Acquisition Automatic
Almanac Update Automatic
Receiver IC Sensitivity 165 dBm (Tracking) 160 dBm (Acquisition) 148 dBm (Cold start)
Operating frequency 1574 MHz to 1605 MHz
Cold start < 2 minutes

External 1 x MicroSDXC card slot

Navigate With Confidence

The Element series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance Element will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather sunlight viewable displays deliver chart and navigation data in beautiful color.

Sonar is Standard
Element S comes with a Single channel High CHIRP Sonar with 9 pin connector.

Quad-core performance
The fast quad-core processor allows instantaneous chart re-draw and continuous 3D rendering while running a simple easy-to-learn user interface.

Lighthouse Sport OS
Raymarines Lighthouse Sport operating system is designed for boaters who value simplicity and ease of operation featuring uncomplicated menus.

Intuitive keypad controls
Helping captains get under way fast and stay on course. Dedicated keypad controls keep the screen free of fingerprints. Additionally three user-programmable quick keys provide instant access to favored pages and an oversized waypoint button allows quick and easy marking of areas of interest.

Live menus
Change settings or customize charts while seeing the navigation display change in real time.

In The Box

  • Element display
  • Surface mount gasket
  • Suncover
  • Trunnion knobs (x 2)
  • Documentation
  • Trunnion bracket
  • Surface mount stainless steel fixings x 4 (M4 x 40 machine screw M4 flat washer M4 locking nut)
  • Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
