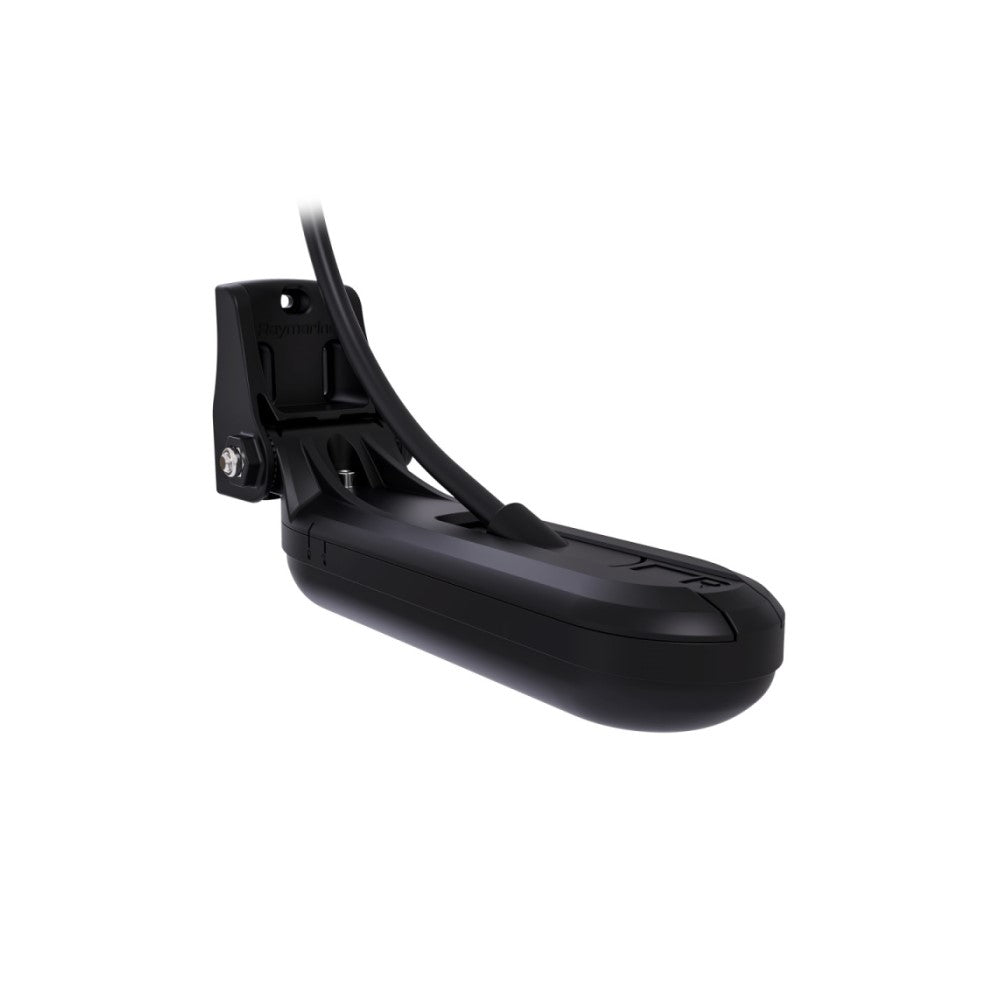

Raymarine HV-100+ HyperVision Transom Transducer (Replaces 705-A80603)

• Material: Plastic
• Max Depth: 3D: 300\' / Down: 600\' / Port: 300\' / Starboard: 300\' / Conical: 900\'
• Frequency: CHIRP: 1.2 MHz / CHIRP: 350 kHz /High CHIRP: 200 kHz
• Beam Width: 3D: 180° / Down: 60° / Conical: 25°
• Records: Depth / Temperature
• Hull Material: Fibreglass / Metal
• Cable Length: 19\' (6m)
• Deadrise Angles: 0-90°

The HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D DownVision SideVision and Conical High Frequency CHIRP this is the only shallow-to-medium depth transducer you\'ll ever need.

1.2MHz HyperVision DownVision and SideVision frequencies offer the utmost in clarity and lifelike sonar imaging.
