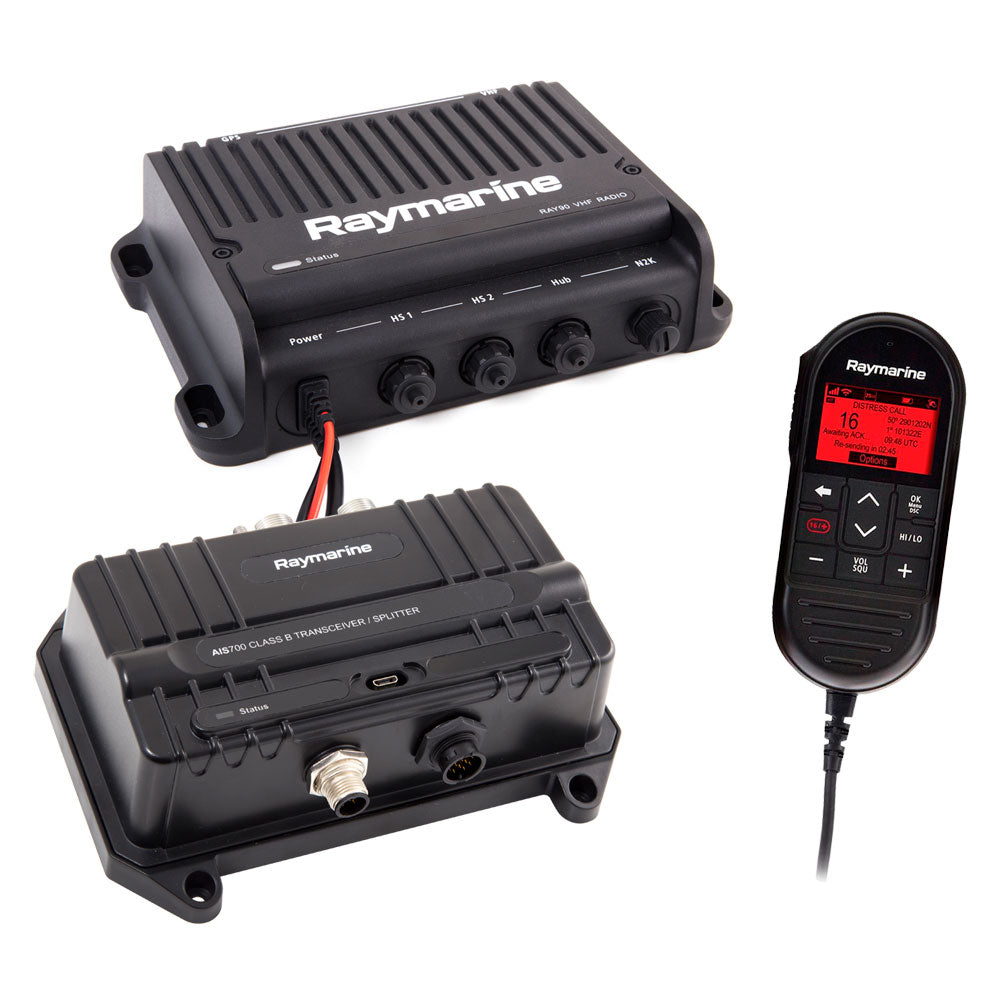

Raymarine Ray90 VHF Black Box with AIS 700 Tx & Rx

Raymarine Ray90 VHF Black Box with AIS 700 Tx & Rx


Regular price £1,895.00
Regular price Sale price £1,895.00
Sale Sold out
Tax included. Shipping calculated at checkout.

The Ray90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output plus 2-way talkback. When things get foggy the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.

The Ray90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions. The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker.

For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is the Ray90 all the power and performance you need for essential communications on the water.


  • Waterproof Rating: Complies with IPX6 & IPX7 | Complies with EN60945
  • Dimensions: Height - 63mm (2.48 in) | Width - 235mm (9.25 in) max | Depth 160mm (6.30 in) max excl rear cables
  • Weight: 2.6 Kg (5.7 lbs)
  • Operating Temperature Range: -25°C to 55°C
  • Storage Temperature Range: -25°C to 70°C
  • Humidity: up to 95%
  • Communications Port: NMEA 0183 (version 4.01) | NMEA2000 (version 3.101)
  • Nominal Supply Voltage: 12V DC. Reverse polarity and over voltage protected
  • Operating Voltage Range: 9V DC to 16V DC
  • Current Consumption: Less than 6A at High Power (13.6V) | Standby: 600 mA | Receive: 2 Amps


  • Channels: All available US International and Canadian VHF marine bands
  • Frequency Range: 156.000 – 157.425 MHz | 155.500 to 161.425 MHz Private channels
  • Frequency Stability: + / - 1.5 ppm
  • Channel Spacing: 12.5 kHz
  • Power Output: High Power = 25 Watt | Low Power = 1 Watt
  • Spurious Emmission: Better than -36 dBm at 25W (Less than 0.25 µW)
  • Maximum Deviation: +/- 5kHz
  • Antenna port impedance: 50 ohms typical


  • Receiver Type: Double Conversion Super Heterodyne
  • Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
  • Squelch Sensitivity: Less than -2 dBµ EMF
  • Hum & Noise: Better than -40 dB
  • Audio Distortion: Less than 10%
  • Receiver Sensitivity: Distance -119 dBm (0.25uV)@12 dB SINAD ← Typical | Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
  • Adjacent Channel Selectivity: More than 70 dB
  • Spurious Response Rejection: More than 70 dB
  • Inter Modulation Rejection: More than 70 dB


  • External Passive Speaker Power: 5W (4Ω) / 2.5W (8Ω)
  • Hailer Speaker Power Output: 24W (4Ω) / 12W (8Ω)


  • Number of channels: 72
  • Cold Start: 29s
  • Receiver IC Sensitivity: -167 dBm (Tracking) / -148 dBM (Acquisition)
  • GNSS Compatibility: GPS | GLONASS | *BeiDou
  • SBAS Compatibility: WAAS | EGNOS | MSAS
  • Special Features: Active jamming and interference reduction
  • Operating frequencies: GPS L1 C/A | GLONASS L10F | Beidou B1
  • Signal Acquisition: Automatic
  • Almanac Update: Automatic
  • Geodetic Datum: WGS-84 (alternatives available through Raymarine MFD)
  • Refresh Rate: 20 Hz (20 times per second concurrent GNSS)
  • Positional Accuracy: Without SBAS: <2.5 metres 95% of the time | With SBAS: <2 metres 95% of the time
  • Raymarine AIS700 Transceiver with Antenna Splitter
  • Waterproof Rating: IPX6 and IPX7
  • Operating temperature: -15°C to +55°C
  • Storage temperature: -20°C to +75°C
  • Humidity: Up to 93% @ 40°C
  • Power Supply: 12v and 24 nominal
  • Power Consumption: <3W
  • Peak current: 3A
  • Load Equivalency Number: 1 LEN
  • DSC Receiver: Implemented by time sharing with one TDMA receiver
  • Transmitter band | Receiver 1 & 2 band: 156.025 MHz to 162.025 MHz (in 25KHz steps)
  • Transmitter | Receiver | Transceiver Specification: To meet IEC 62287-2 relevant sections
  • GPS receiver: u-blox MAX-M8W
  • GPS Cold start acquisition time: 26s nominal
  • Positional source: GPS & GLONASS
  • AIS performance: 5W SOTDMA
  • Operating frequency range: 156.0MHz to 162.025MHz Transmitting |1 56.0MHz to 162.025MHz Receiving
  • VHF AIS & Antenna port impedance: 50 Ohms
  • VHF antenna connector type: SO-239 co-axial
  • VHF radio connector type: SO-239 co-axial
  • GNSS antenna connector: 50Ω TNC co-axial
  • NMEA0183 & NMEA2000 Compatible
  • USB: Micro-B

The NEW Raymarine AIS700 is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver the AIS700 not only receives broadcasts from other vessels it also transmits your own boat’s information too helping you to be seen on other vessels’ systems. The AIS700 features a built-in antenna splitter which simplifies installation with existing VHF radio antennae. Other features include latest SO-TDMA networking for longer range and faster performance NMEA2000 NMEA0183 PC and SeaTalkng Compatibility Software or hardware switchable Silent Mode for enhanced security when needed.
