Raymarine

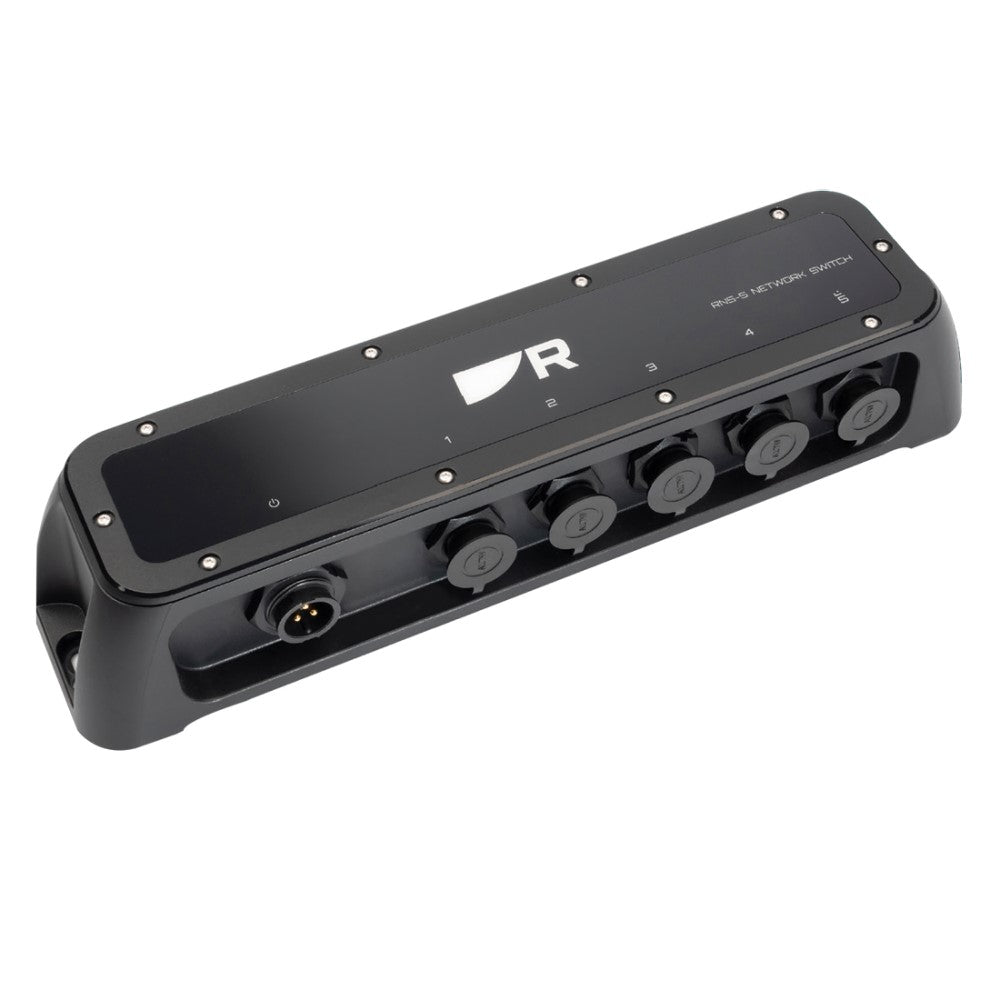

Raymarine RNS-5 Gigabit 5-Port RayNet Network Switch

Raymarine RNS-5 Gigabit 5-Port RayNet Network Switch

SKU:705-A80731

Regular price £395.00
Regular price £355.95 Sale price £395.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • Operating voltage range: 9 to 32 V dc
  • Power Consumption: <2.5 watts <600mA @12V
  • Operating temperature range: -25°C (-13°F) to + 55°C (131°F)
  • Water ingress protection: IPx6
  • Dimensions: 286 x 69 x 55mm (11.26\" x 2.72\" x 2.17\")
  • Weight: 0.36 Kg (0.79 lbs)
  • Protocals: RayNet Ethernet. Legacy SeaTalkHS using an adaptor cable
  • Connection Speed: 1 Gigabit
  • Number of Ports: 5
  • POE (Power over Ethernet): No

The RNS-5 network switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling. Use the RNS-5 to integrate Axiom displays with radars sonar modules IP cameras and Teledyne FLIR thermal cameras. The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained together for larger systems. The RNS-5 is simple to install and requires no complicated setup.

Key Features

  • 5 RayNet Ethernet gigabit ports for fast and reliable connectivity
  • Rugged IPX 6 construction
  • Reliable waterproof RayNet connector Ethernet cable ports
  • Designed for simple bulkhead mounting
  • LED power and network port status indicators
  • Unmanaged- simply plug and play with Raymarine devices.
  • No complicated setup or configuration
