Raymarine

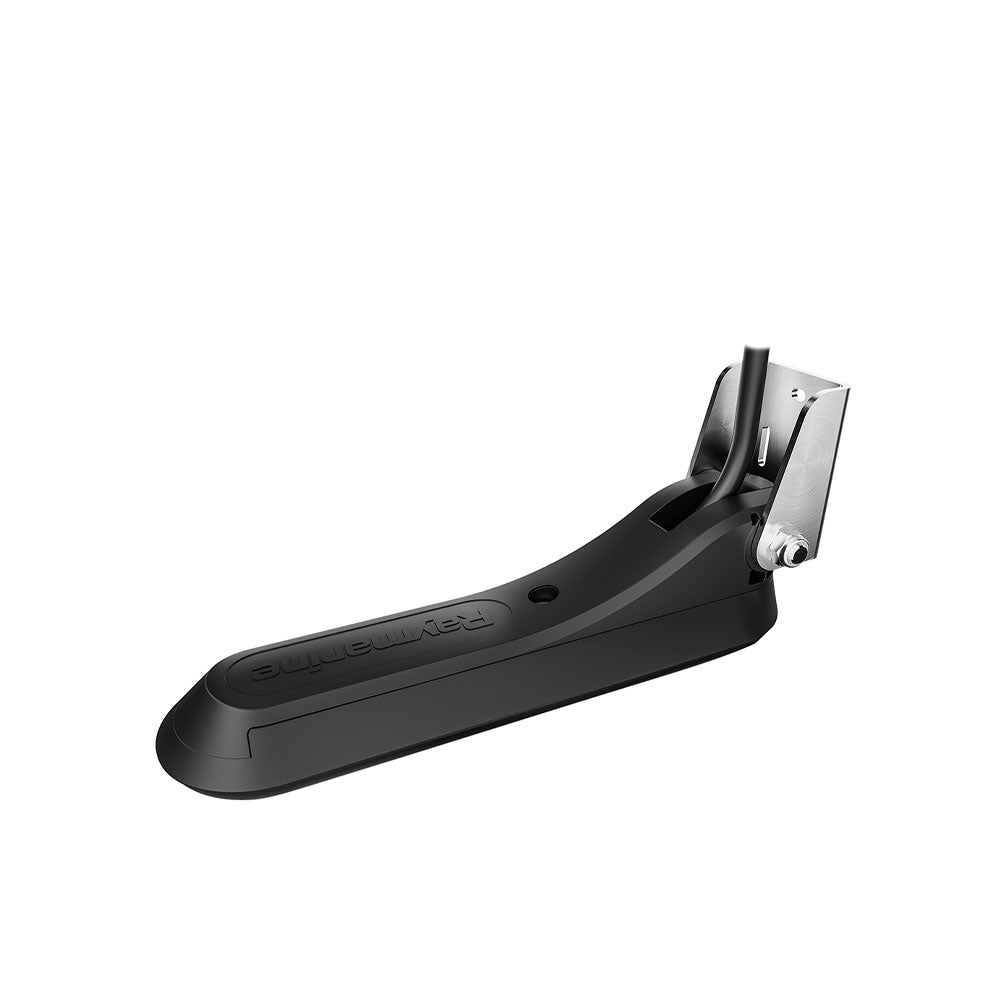

Raymarine RV-100 RealVision 3D Transom Mount Transducer

Raymarine RV-100 RealVision 3D Transom Mount Transducer

SKU:705-A80464

Regular price £440.55
Regular price Sale price £440.55
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • Installation: Transom Mount
  • Material: Plastic
  • Max. Depth (ft): 3D: 300 DownVision: 600 Port: 300 Starboard: 300 Conical: 900
  • Frequency (KHz): RealVision High CHIRP
  • Beam Width (L/H): 3D: 180° Down: 60° Conical: 25°
  • Records: Depth and Temperature
  • Approved Hull Material: Fiberglass Wood Metal
  • Cable Length (Ft): 26
  • Supported Transom Angles: 0-90°

Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel Wide Spectrum CHIRP transducer with DownVision™ SideVision™ high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick accurate readings.

The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris rocks or stumps.

The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)

In The Box

  • RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
  • Transom bracket
  • Mounting hardware
  • Installation instructions
