Raymarine

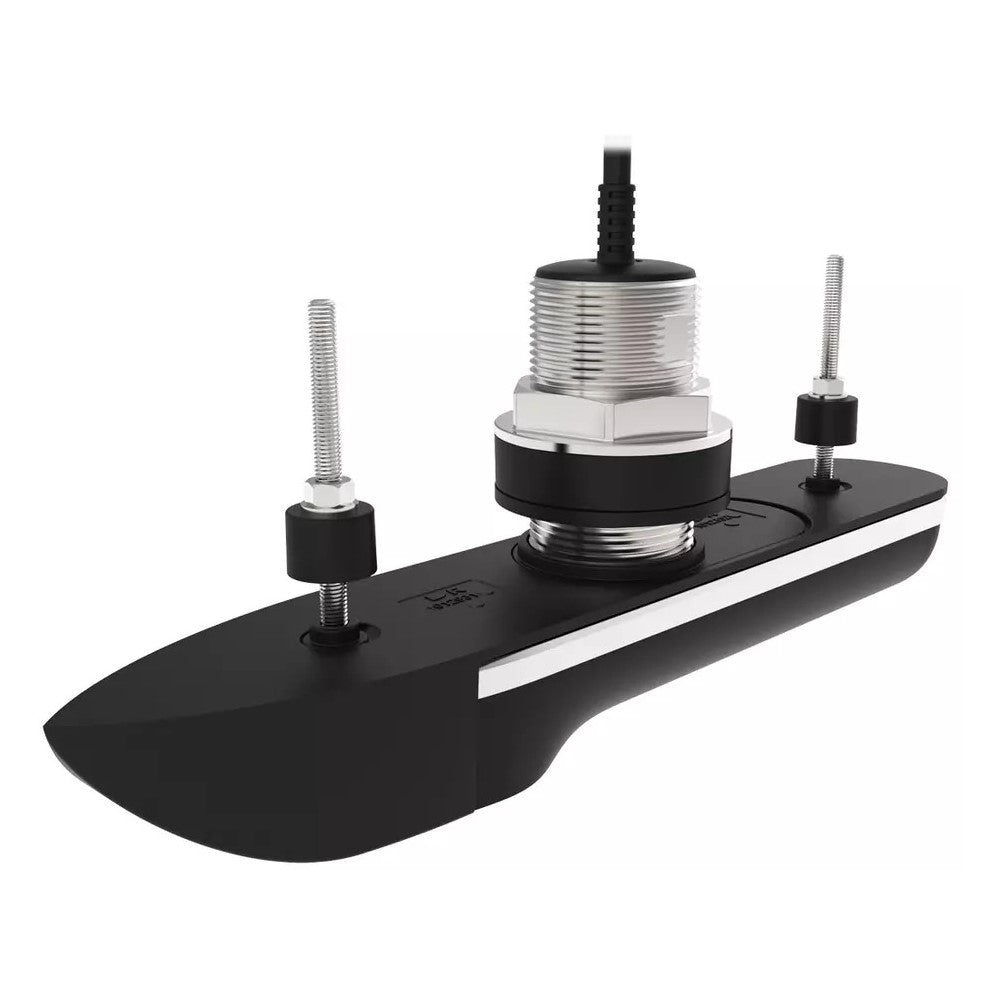

Raymarine RVM-400 RealVision MAX 3D SS Thru-Hull Transducer - 0°

Raymarine RVM-400 RealVision MAX 3D SS Thru-Hull Transducer - 0°

705-A80704

£1,435.50
£1,595.00 £1,435.50
SAVE Please Call
Tax included. Shipping calculated at checkout.
Colour
  • 0° Offset for mounting position with less than 5° hull deadrise
  • Sensors: Temperature sensor AHRS (Attitude and Heading Reference System) sensor
  • Sonar channels: RealVision Max 3D SideVision DownVision Conical High CHIRP 600W
  • Beam width: 200 kHz: 12°
  • Cable length: 8 m (26.2\')
  • Weight: RVM-400 4.56 kg (including cable)
  • Dimensions (including high speed nose cone): Length: 424.69 mm (16.72\") Width: 79.64 mm (3.14\")

Technical Specifications

X
RealVision MAX 3D Sonar
Sensors Temperature sensor
AHRS (Attitude and Heading Reference System) sensor
Sonar channels RealVision MAX 3D
SideVision
DownVision
Conical High CHIRP 600W
Beam width 200kHz: 12°

Phyical
Dimensions Length: 424.69mm (16.72\")
Width: 79.64mm (3.14\")
Cable length 8m (26.2\')
Weight 4.56Kg (including cable)

Enviroment
Waterproof rating IPX6 (surfaces exterior to hull only IPX7 IPX8
Storage temperature range -20°C - 70°C (23°F - 158°F)
Operating temperature range -2°C - 55°C (28.4°F - 131°F)

Sonar Range
Sonar range CHIRP Sonar: 0.6 - 549m (2\' - 1 800\')
DownVision: 0.6 - 229m (2\' - 750\')
SideVision: 0.6 - 183m (2\' - 600\')
RealVision MAX 3D: 0.6 - 183m (2\' - 600\')
{{widget type=\"MagentoCmsBlockWidgetBlock\" template=\"widget/static_block/default.phtml\" block_id=\"343\" type_name=\"CMS Static Block\"}}

The RVM-400 is a single all-in-one transducer suitable for boats with a through-hull transducer mounting position with less than 5° hull deadrise.

RVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats. The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM chartplotters

The RVM-400 series transducers feature DownVision SideVision 600-Watt High CHIRP and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery automatically compensating for vessel motion. The RVM-400 also has a built-in fast-response water temperature sensor for quick accurate readings.

The RVM-400 series transducers feature a rugged stainless steel through hull body suitable for fiberglass wood or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation.

In The Box

  • Documentation
  • Locking collar kit (for transducer cable connector) consisting of: 2 x Split rings (includes spare) 1 x O-ring 1 x Locking collar 1 x Split ring fitting tool
  • Hull nut
  • Cable protector
  • Large internal isolator sleeve
  • Rubber washer
  • External isolator plate
  • High speed nose cone
  • Transducer (including cable)
  • 2 x Nuts for anti-rotation studs
  • 2 x Small washers for Anti-rotation studs
  • 2 x Small internal isolator sleeves
  • 2 x External isolator sleeves
\"\"\"\"
