Rebelcell

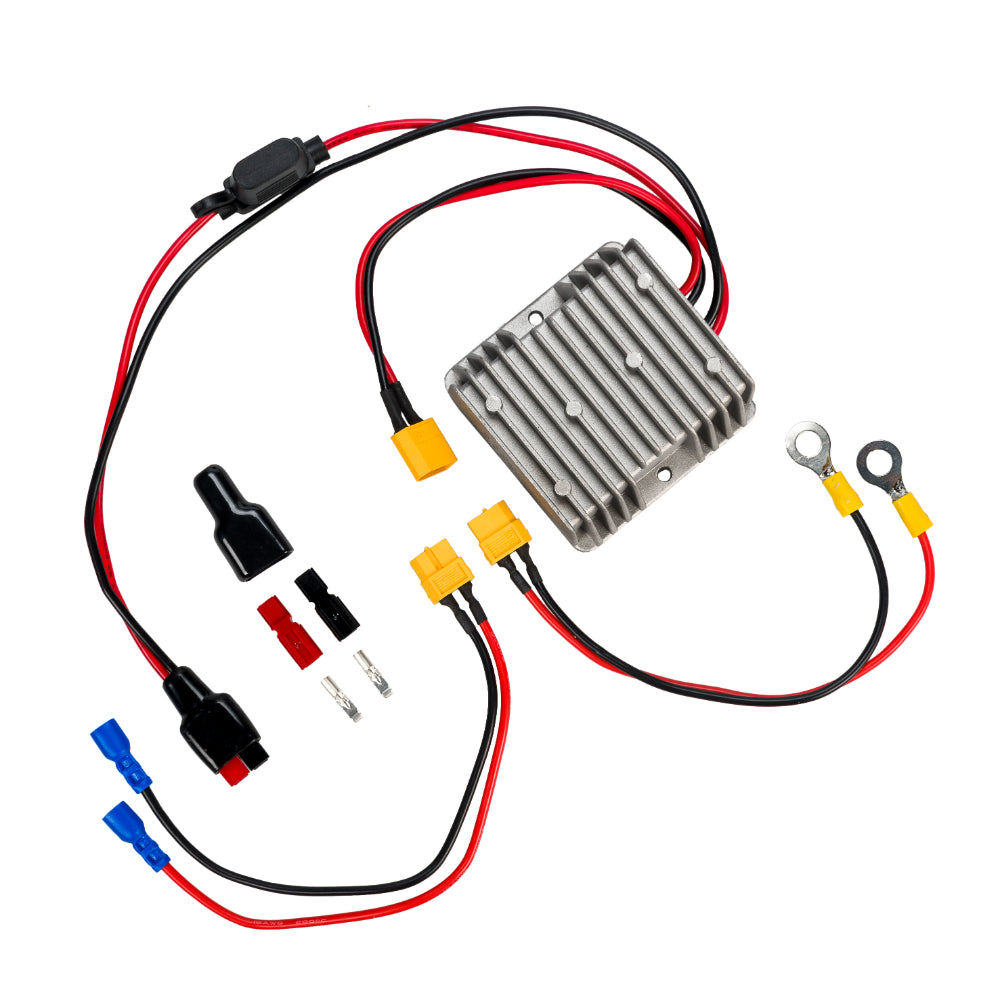

Rebelcell 12V DC Stabiliser - 9A

Rebelcell 12V DC Stabiliser - 9A

SKU:660-OM1212100WL

Regular price £59.08
Regular price Sale price £59.08
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • Type: Non-isolated DC-DC converter
  • Voltage in: 9V-18V
  • Voltage out: 12V DC
  • Power: 120 W
  • Maximum discharge: 9A continuous 12A peak
  • Working temperature: -20 ℃ ~ +65 ℃
  • Conversion Efficiency: 93%
  • Power Consumption: 20 mA
  • Ripple: 45 mV
  • Input (to battery): 1 x 20 cm with XT60 connector with M8 tongue connector or 1 x 20 cm with XT60 connector with Faston connector
  • Output (to equipment): 1 x 40 cm with ANEN PA-45 connector
  • Material: Aluminum
  • Dimensions: 74 x 74 x 32 mm
  • Weight: 300 g

The 12V DC Stabilizer 9A converts the voltage of all Rebelcell 12V batteries to a stable 12V output voltage. This enables the use of a Rebelcell battery with electronic equipment that requires a stable 12V output or has a different operating voltage range than the battery. Using the Stabilizer can increase the runtime and ensure trouble-free operation of the connected equipment.

Easy Connection: M8 or Faston connector for easy connection to the battery. 1 click connection via ANEN PA-45 connector to your 12V equipment.

Waterproof: Filled up with epoxy resin IP65 waterproof can be used outdoors in wet surroundings like a fishing boat or kayak.

Built-In Abuse Protection: Switches off automatically in case of short circuit high temperature high voltage and deep discharge. With integrated 10A fuse in + output wire to protect your equipment.

Warranty: 1 year warranty.
