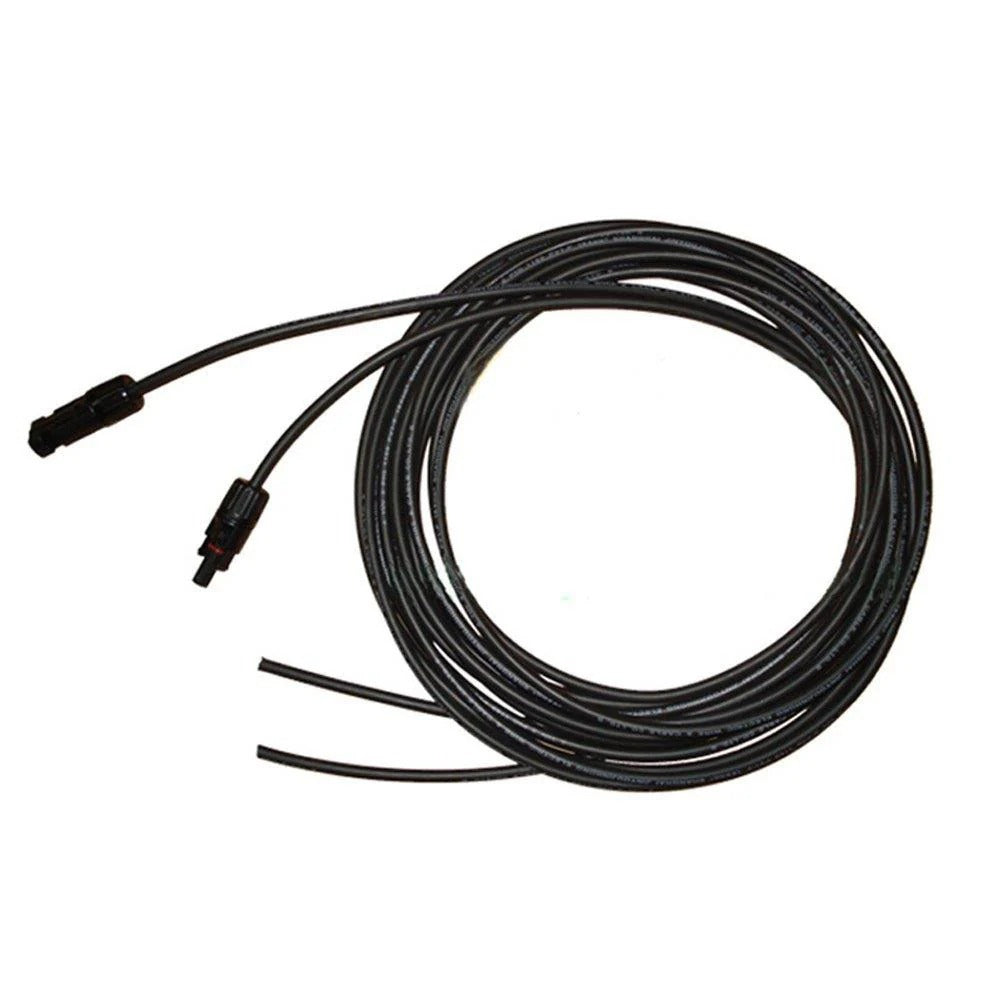

Renogy MC4 Solar Panel to Charge Controller Cable - 30' 10AWG

• Hard plastic connectors at each end
• Female and male connectors for an unbreakable connection
• Weatherproof insullated wiring
• Exposed ends for connection to the solar charge controller
• Essential for off-grid solar power system setup
• Black sunlight resistant cable
• Extends and locks built-in cables

The Renogy Adaptor Kit is a set of two wires designed specifically for connecting a Renogy solar panel to a charge controller. The Adaptor Kit includes male and female connectors on one end for effortless connection to the solar panel and exposed wire on the other end to lead directly into the charge controller. This wiring kit is essential for off-grid solar installations roof or ground level and is offered in a wide range of sizes. The wiring is weatherproof and designed to withstand extreme heat and cold. This wiring kit is ideal for Renogy Off-Grid Kits ranging from 100W to 400W.

Specification

• Length: 30ft
• AWG: 10
• Rating Voltage: 600/1000V
• Temperature: -40°F to +185°F
• Normal Cross Sectional Area of the Conductor (mm2): 6.0
• Diameter of Wires in Conductor (mm): 3.02±0.08
• Min. Wall Thickness of Insulation (mm): 0.85
• Min. Wall Thickness of Sheath (mm): 1.08
• Number of Wires in Conductor: 84
• IP 65 Protection
• Conductor: Tinned copper wire
