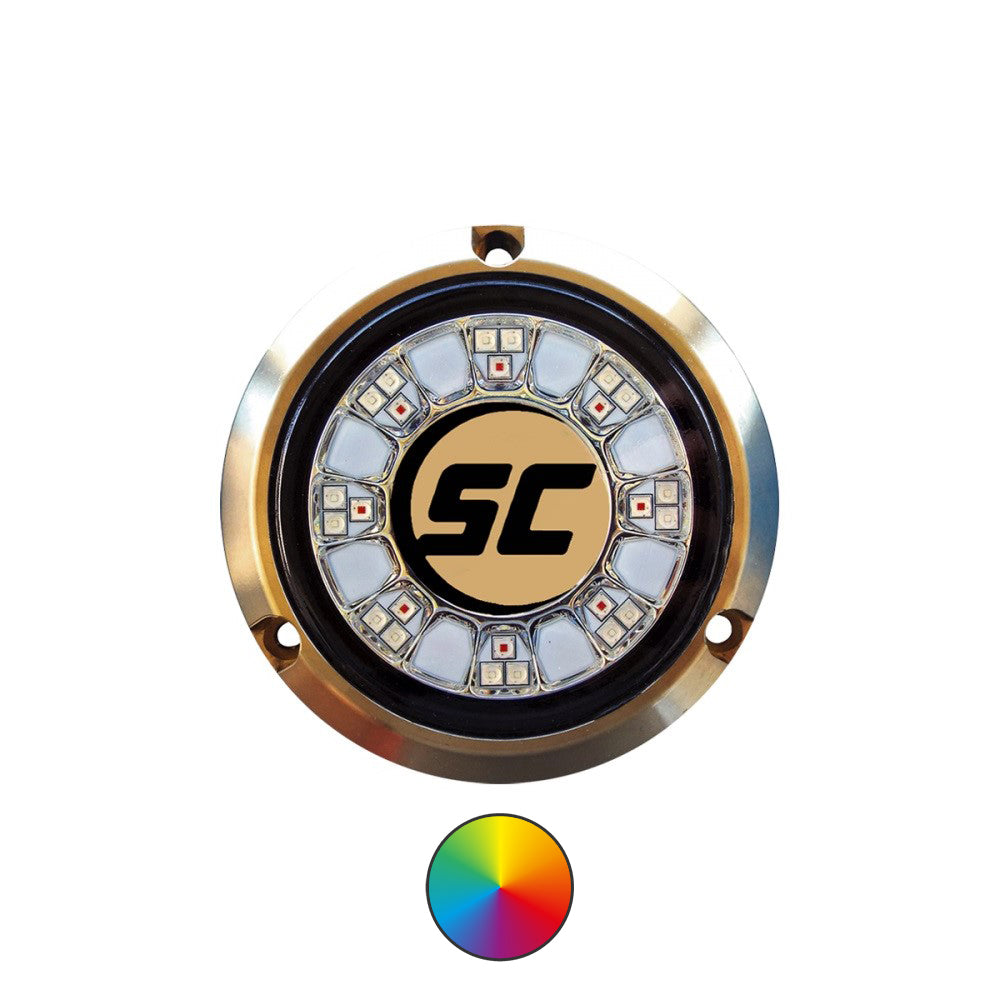

Shadow-Caster SCR-24 Underwater 4" Bronze LED Light - RGB
Shadow-Caster SCR-24 Underwater 4" Bronze LED Light - RGB
SKU:422-SCR-24-CC-BZ-10
- Proprietary clear-gel-filled design injected through entire unit - eliminates condensation and/or water intrusion under stress
- Tough scratch resistant tempered glass lens with bronze housing - impervious to acetone solvents and demanding marine environments
- Transient surge and reverse polarity protection - dramatically prolongs unit life
- Thermal throttling technology - enables safe operation even out of water
- From simple on-off to full-feature lighting effects unit is enabled for a host of control interfaces
- 12 built-in colours and can be enabled with unlimited colours and many other advanced features using Shadow-NET
- 3-Year Warranty
The SCR-24 is a 24 LED round underwater marine light and provides the vessel with 90 watts of intense LED lighting. The SCR-24’s are designed within a compact 4″ diameter bronze housing for under waterline surface mounting. Single or multi-colour versions available with variable brightness and a wide array of control options.
Tehnical Information
- Up to 7 500 lumens
- 120° beam angle
- 90 watts power draw
- 7.8 amps operating current draw @ 12 volts
- 10-40 volts input
- 4″ (102 mm) OD
- IP68 fully submersible waterproof design
Control Options
Power Toggle Control
Quickly toggle power source to advance to next colour or brightness level. Used with a single colour lights allows for light on/off fade in/out and strobe. Two colour lights allows either single colour on fade between colours and strobe current colour. Full colour lights allow for any single colour on fade blue to white fade through all 12 colours and strobe current colour.
Push Button Control
Connect to any push button controller. Ask about Shadow-Caster’s highest quality marine-grade push button controllers optimized to work seamlessly with your lighting requirements. Used with a single colour lights allows for light on/off fade in/out and strobe. Two colour lights allows either single colour on fade between colours and strobe current colour. Full colour lights allow for any single colour on fade blue to white fade through all 12 colours and strobe current colour.
Shadow-Net Control
Shadow-NET is a multi-channel communications platform created by Shadow-Caster to allow seamless integration and control of all of your boat’s lighting. Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET control module (SCM-MFD-LC) & app. Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of colour and fading dimming strobe rate music sync multiple zones and much more.
