Shakespeare Marine

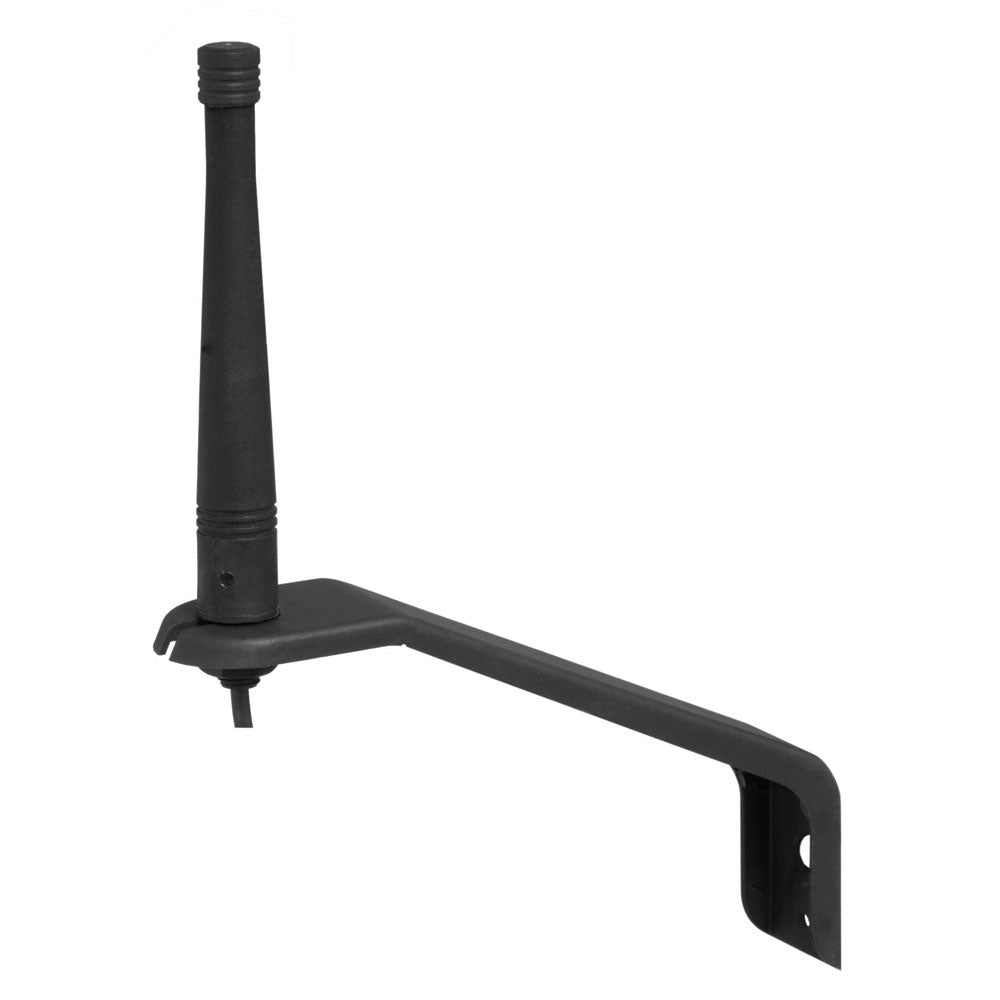

Shakespeare LDDB - GSM & GPRS Cellular Antenna - 0.15m

Shakespeare LDDB - GSM & GPRS Cellular Antenna - 0.15m

SKU:818-YSE-DB

Regular price £57.16
Regular price Sale price £57.16
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • Frequency: 860-960Mhz & 1750-2100Mhz
  • Polarisation: Vertical
  • Impedance: 50 Ohms
  • VSWR: <1.5:1 at 860-960Mhz. <2:1 at 1750—2100MHz
  • Gain: 3dB
  • Cable: 5m RG58
  • Connector: TNC Plug as standard
  • Power Rating: 50W
  • Element Material: Solid Brass sleeved dipole
  • Length: 0.15m
  • Mounting: Supplied as Standard with R/A bracket

The LDDB antenna is a Triple Band sleeved dipole tuned to cover GSM and GPRS frequencies. The antenna is a full 3dB sleeved dipole on the 860-960MHz band and have excellent responses from 1800—2200MHz.

The antenna has a rugged design that is small enough to be mounted in many positions. It is supplied as standard with a stand off bracket and 3 screws.
