Solar Technology

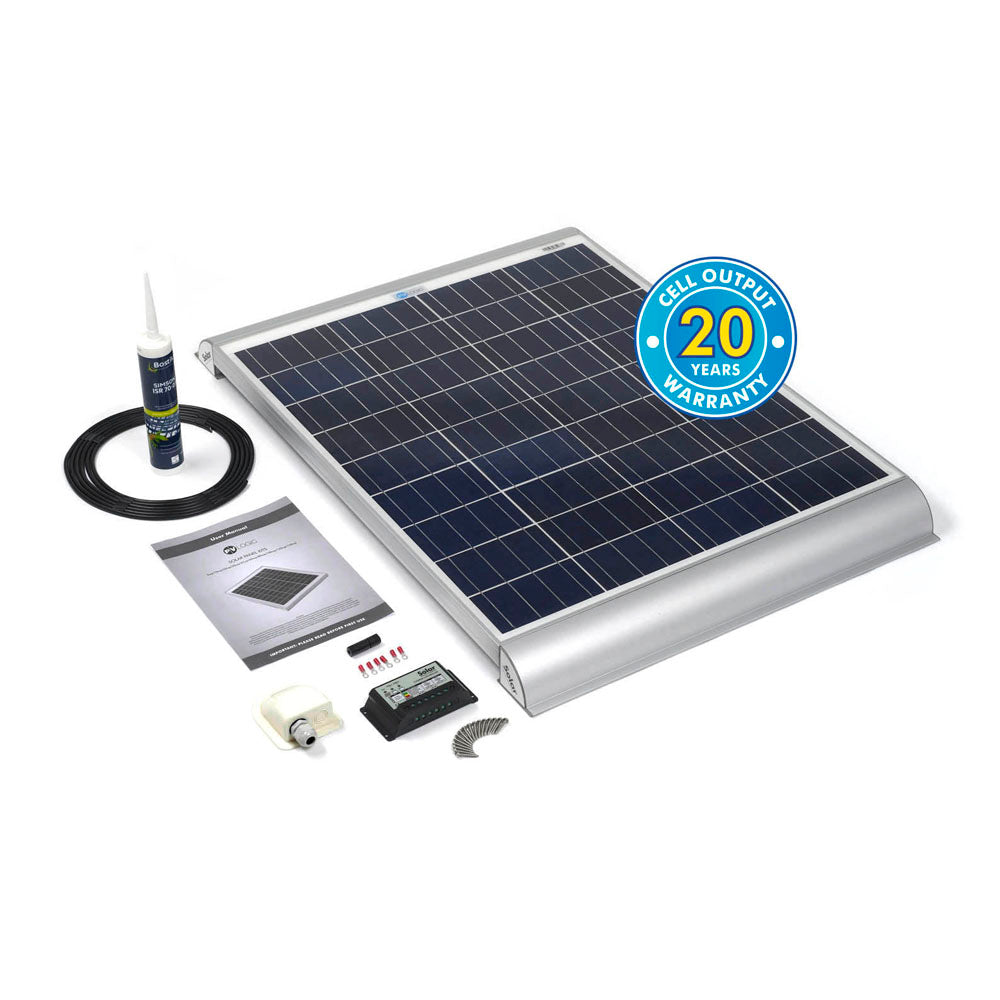

Solar Technology 80W Rigid Solar Panel & Aero Brackets Kit

Solar Technology 80W Rigid Solar Panel & Aero Brackets Kit

SKU:751-STPMH80AE

Regular price £275.00
Regular price Sale price £275.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour

STP080 80W Rigid Solar Panel

  • Power: 80W
  • Size: 836 x 670 x 35mm
  • Weight: 6.7Kg
  • Amp hours per day (A): 27.9
  • Charge Controller: 10Ah
  • Vmp (VDC): 17.5
  • Imp (A): 4.65
  • Voc (V): 22
  • Isc (A): 5

STCC10 10A Dual Battery Charge Controller

  • Nominal System Voltage: 12/24VDC (automatic system voltage recognition)
  • Battery Voltage Range: 6-36V
  • Rated Battery Current: 10A
  • Over Voltage Disconnect Voltage: 16V/32V
  • Charging Limit Voltage: 14.6V/29.2V
  • Equalize Charging Voltage: 14.6V/29.2V
  • Float Charging Voltage: 13.8/27.2V
  • Operating temperature: -35oC to +55oC
  • Overall dimensions: 135 x 70 x 35mm
  • Terminal size: 6mm2
  • Net weight: 155g

Includes Aero brackets

The mounts can be safely bonded to the surface removing the need to drill holes in your caravan motorhome or boat. The solar panel then simply slides into the groves and is secured with the endcaps screwing into the side of the panel.
(670 x 105x 62mm aero brackets Includes side caps and fixings)

Build your perfect kit starting with a premium solar panel

With power ratings from 5W to 200W our rigid solar panels fulfil a variety of energy needs ranging from a continuous trickle feed of power to prevent battery drain in caravans motorhomes and boats to creating energy self-sufficiency for off-grid travel.

Our rigid panels also deliver energy to remote power systems such as electric fences and gates as well as pumps in garden ponds.

Rigid solar panels rated 80w and above include bypass diodes to minimise the effect of shadows so that energy generation is maximised.

A charge controller should be used for rigid solar panels of 20w and above to protect the battery from being overcharged and to prevent reverse current drain.

Includes 10A Dual Battery Charge Controller

This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems.

The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.

  • Reverse current protection.
  • Unique dual battery charging function.
  • Efficient Series PWM charging increases battery lifetime and improves solar system performance.
  • 12/24V automatic recognition.
  • Overload protection
  • Open circuit protection
  • Lightning surge protection
  • Deep discharge protection
  • Charge current protection up to 10A
