Veratron

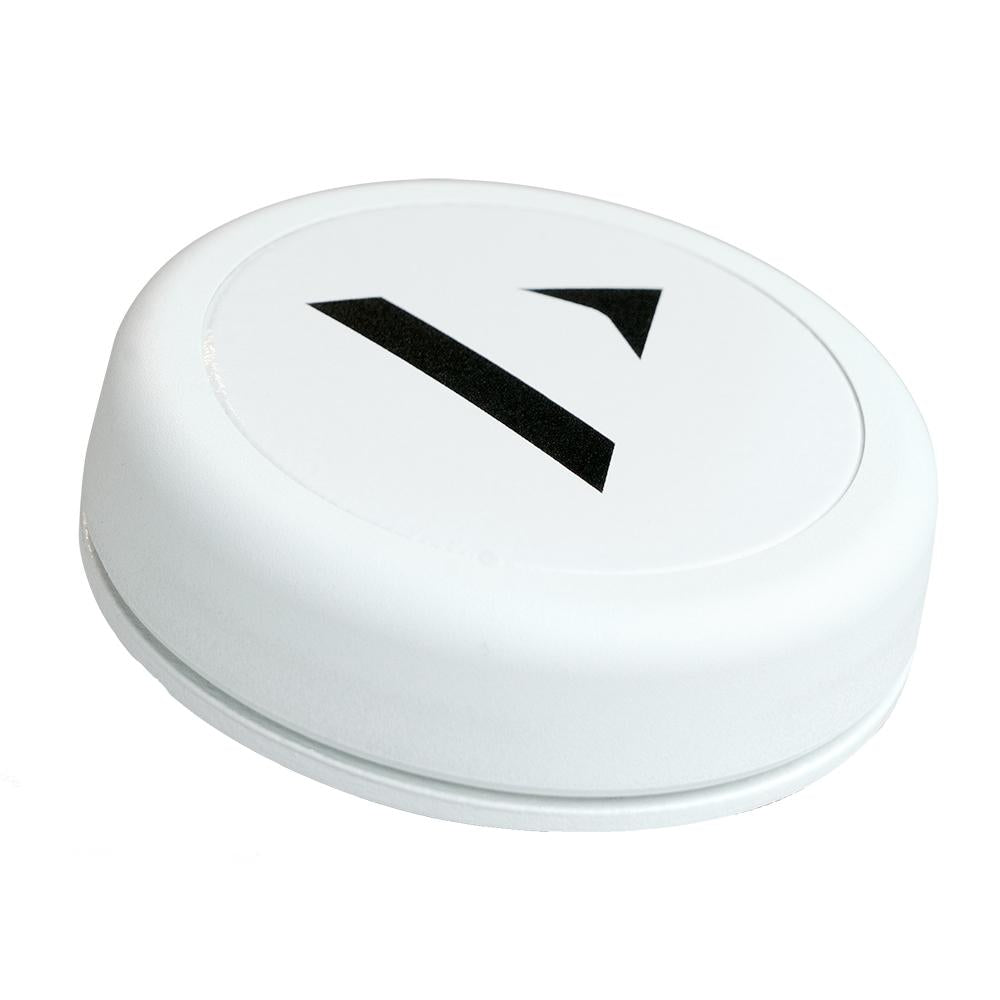

Veratron Go Plus+ NMEA 2000 GPS GNSS Bluetooth Sensor

Veratron Go Plus+ NMEA 2000 GPS GNSS Bluetooth Sensor

SKU:797-B00041701

Regular price £263.00
Regular price Sale price £263.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • 72 channel receiver
  • Fast cold-start position fix
  • Compatible with OceanLink 52MM Bezels
  • 10Hz update rate
  • Up to 3 concurrent GNSS systems (GPS GLONASS and GALILEO)
  • SBAS – WAAS/EGNOS/MSAS/GAGAN supported
  • NMEA 2000 standard PGNs transmitted for position time speed and heading
  • Front-end SAW band-pass filter for enhanced immunity against electrical noise
  • Interchangeable bezel option

All the boat’s data close to your finger tips

Veratron GO Plus+ is a combined GPS receiver and NMEA 2000 to Bluetooth Low Energy (BLE) gateway which brings all your vessel data to your fingertips. The embedded high-performance GNSS receiver supports GPS Galileo and GLONASS constellations and precision augmentation (SBAS). The BLE gateway – together with the veratron smartphone and tablet apps – allows to monitor your engine read your sailing performance data keep an eye on your battery’s status and receive alarm notifications. Thanks to its reduced installation footprint – which makes it the smallest GPS receiver in the market – the veratron GO device can be mounted almost everywhere in your boat. Powered by the NMEA 2000 network it doesn’t need any additional wiring other than the standard drop cable and is protocol certification ensures maximum interoperability with your boat network.

Veratron Navdash App

\"\"\"\"

Launched beginning of 2020 The Veratron GO device was welcomed with huge enthusiasm. The GNSS is the smallest receiver on the market measuring 60.7mm x 18.9 mm.

Veratron GO features 3 versions the Veratron GO (GPS) Veratron GO Data (Bluetooth™) and Veratron GO Plus+ (GPS and Bluetooth). These 3 NMEA certified devices share the same look but their functions are not to be confused.

The Veratron GO (797-B00034901) is a GPS/GLONASS/Galileo receiver in one compact package. NMEA 2000® certified it has easy plug-and-play installation that do not require any setup. Built for marine use extreme weather conditions and continual outdoor exposure this powerful little device IPX7 protected receives 12V DC power and connects to NMEA backbone via a standard NMEA Micro-C M12 5-pin connector. Accurate to 2.5 meters with a good sky view the small instrument has high capabilities with 72 channel reception and a 10Hz refresh rate. A GPS fix can be expected within 30 seconds from a cold start.

The Veratron GO Data (797-B00041601) embeds a NMEA 2000 to Bluetooth Low Energy gateway which allows the repeat of all the vessel’s digital data to your smartphone or tablet. With 2.4 GHz band and 40 channels it can connect to a range of 160 meters (considering where the device is installed on your vessel) and up to 7 simultaneous connections are possible. Your data is protected since the device pairing via passkey is supported. The device can be programmed via the App to support approximately 50 sets of data including Engine RPM Coolant Press Rudder Angle TWA or Battery Current.

The Veratron GO Plus+ (797-B00041701) combines all the features of the above devices in a single unit.

Together with the launch of the Veratron GO devices the NavDash App has also been introduced the first mobile App compatible with the Veratron GO. Download the App now from Google Play or App Store on the links above.
