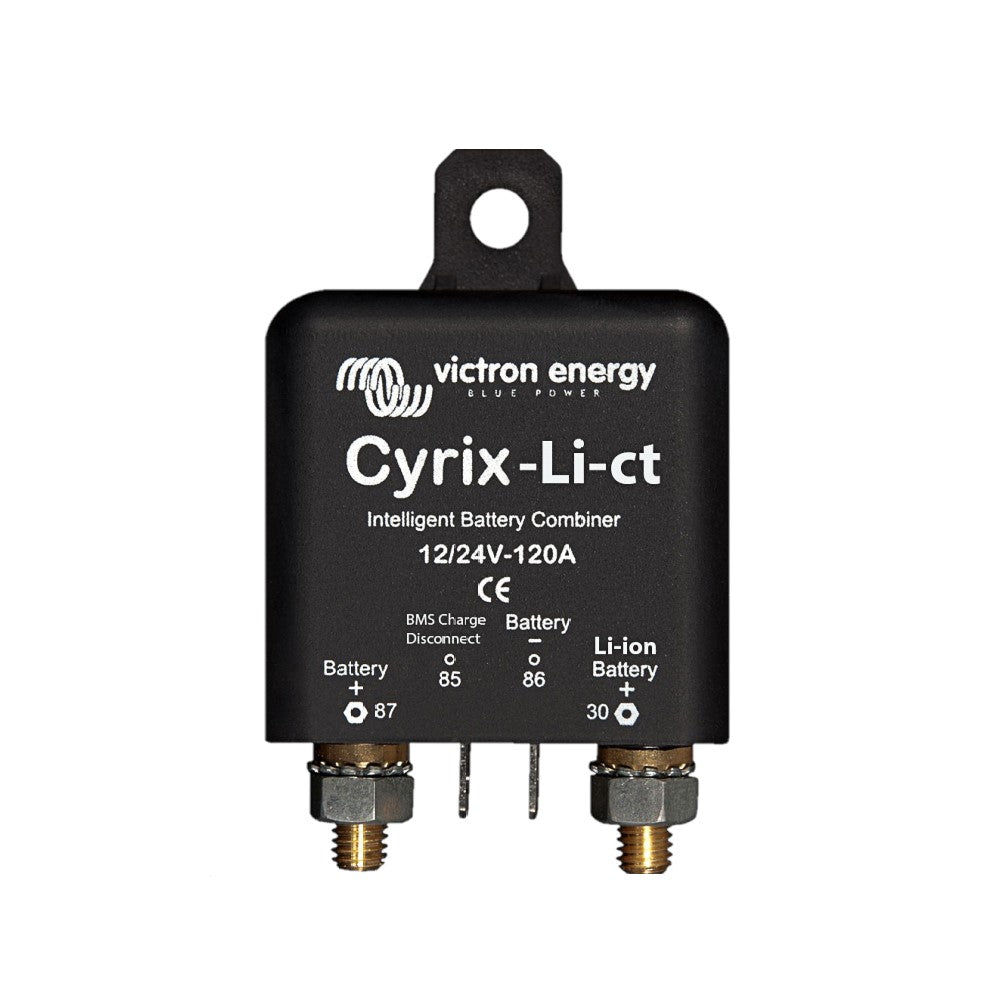

Victron Cyrix-Li-ct Intelligent Li-ion Battery Combiner 12/24V - 120A

• Voltage: 12/24V
• Continuous current & Breaking capacity at 12V or 24V: 120A
• Current Consumption When Open: 4 mA
• Protection Category: IP54
• Dimensions: 46 x 46 x 80mm
• Weight: 0.11Kg
• Warranty: 5 Years

The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct.

The Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFePO4 battery:

• if the Charge Disconnect output of the VE.Bus BMS is high and
• if it senses 13 4V (resp. 26 8V) or more on one of its power terminals

The Cyrix will disengage immediately:

• when its control output becomes free floating signalling cell over voltage or cell over temperature and/or
• when battery voltage drops below 13 2V. Start assist function: a short positive pulse will close the relay during 30 seconds

A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over temperature.
