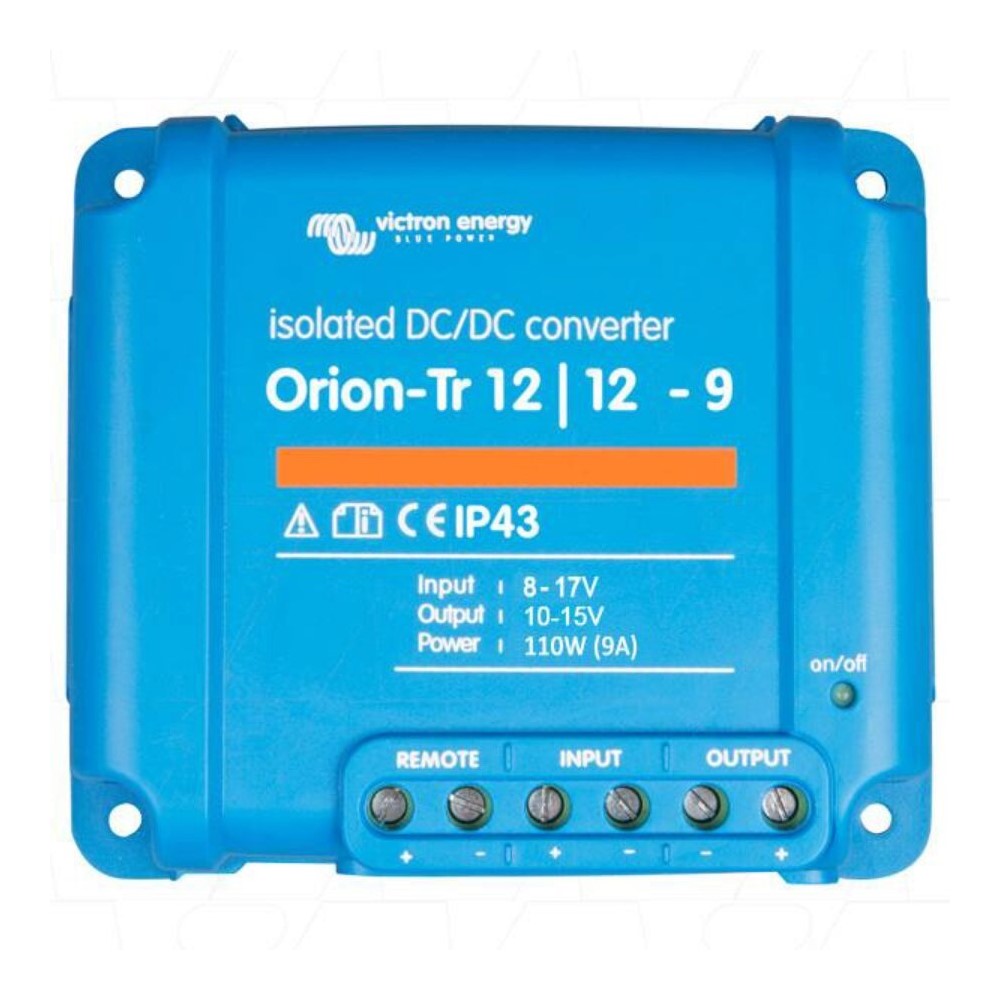

Victron Orion-Tr Isolated DC-DC Converter 12/12-9A (110W)

Victron Orion-Tr Isolated DC-DC Converter 12/12-9A (110W)

SKU:792-ORI121210110R

Regular price £67.28
Regular price Sale price £67.28
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • Input Voltage Range: 8-17V
  • Under Voltage Shutdown: 7V
  • Under Voltage Restart: 7.5V
  • Nominal Output Voltage: 12.2V
  • Output Voltage Adjust Range: 10-15V
  • Short Circuit Output Current: 32A
  • Cont. Output Power at 25°C: 110W
  • DC Connection: Screw Terminals
  • Protection Category: IP43
  • Dimensions: 100 x 113 x 47mm
  • Weight: 0.42Kg
  • Warranty: 5 Years

Remote on-off: The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger: For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output current: An unlimited number of units can be connected in parallel.

IP43 protection: When installed with the screw terminals oriented downwards.

Screw terminals: No special tools needed for installation.
