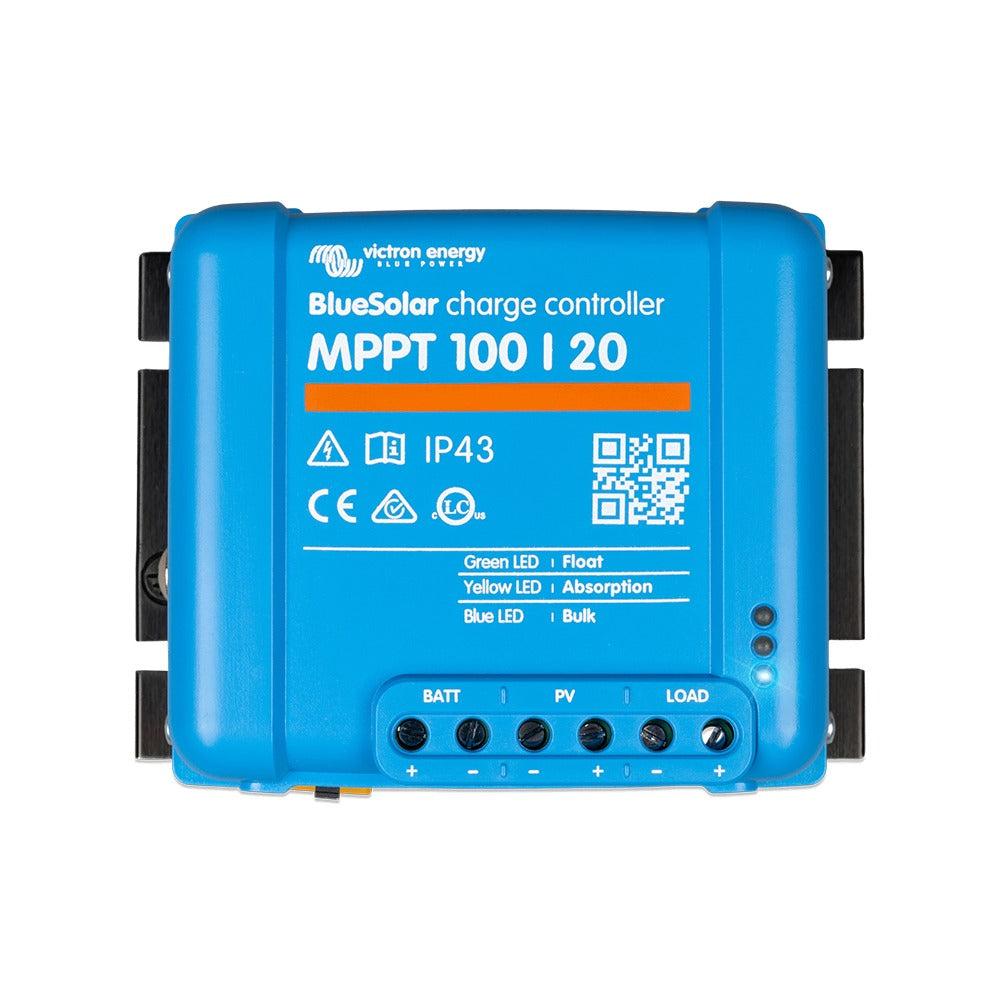

Victron SCC110020170R BlueSolar MPPT 100/20
Victron SCC110020170R BlueSolar MPPT 100/20
SKU:792-SCC110020170R
- Voltage: 12/24/48V
- Rated Charge Current: 20A
- Nominal PV Power 12V: 290W
- Max. PV Short Circuit Current: 20A
- Max. PV Open Circuit Voltage: 100V
- Protection Category: IP43 (electronic components) IP22 (connection area)
- Efficiency: 98%
- Bluetooth Enabled: No
- Dimensions: 100 x 113 x 60mm
- Weight: 0.65Kg
A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest fastest technology BlueSolar maximises this energy-harvest driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health extending its life.
Features
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky when light intensity is changing continuously an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery and the inverter remote control connected to the load output. A special interface cable may be needed please see the manual.
Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and if needed day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
Programmable battery charge algorithm
See the software section on Victron for details
Day/night timing and light dimming option
See the software section on Victron for details
Programming real-time data and history display options
- Color Control GX or other GX devices
- A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.
